Circuit Diagram

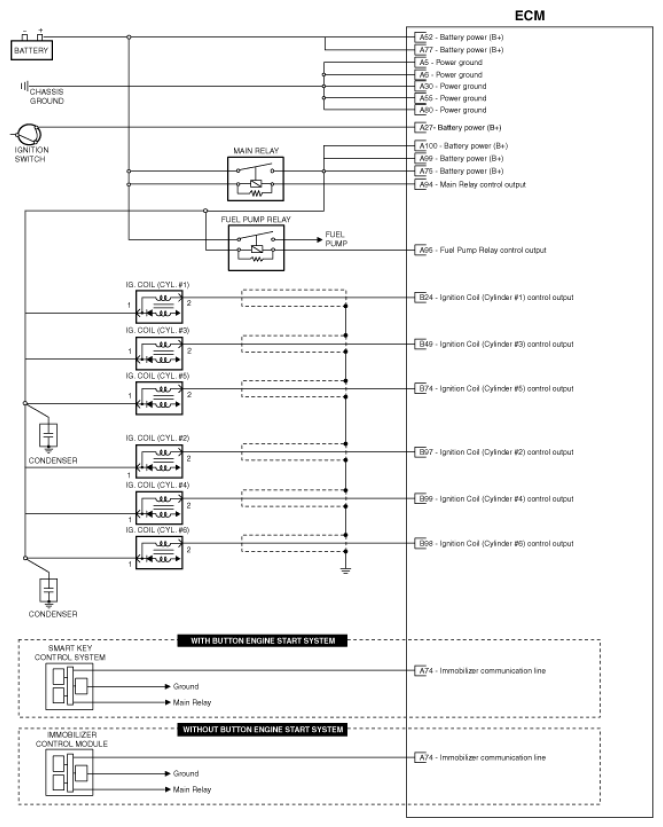

Fig 1: ECM - Circuit Diagram (1 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

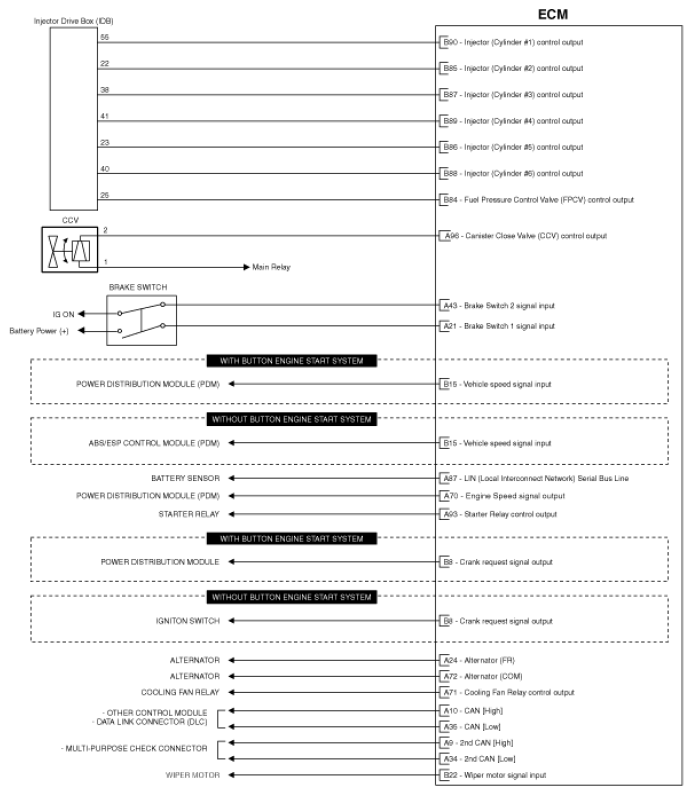

Fig 2: ECM - Circuit Diagram (2 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

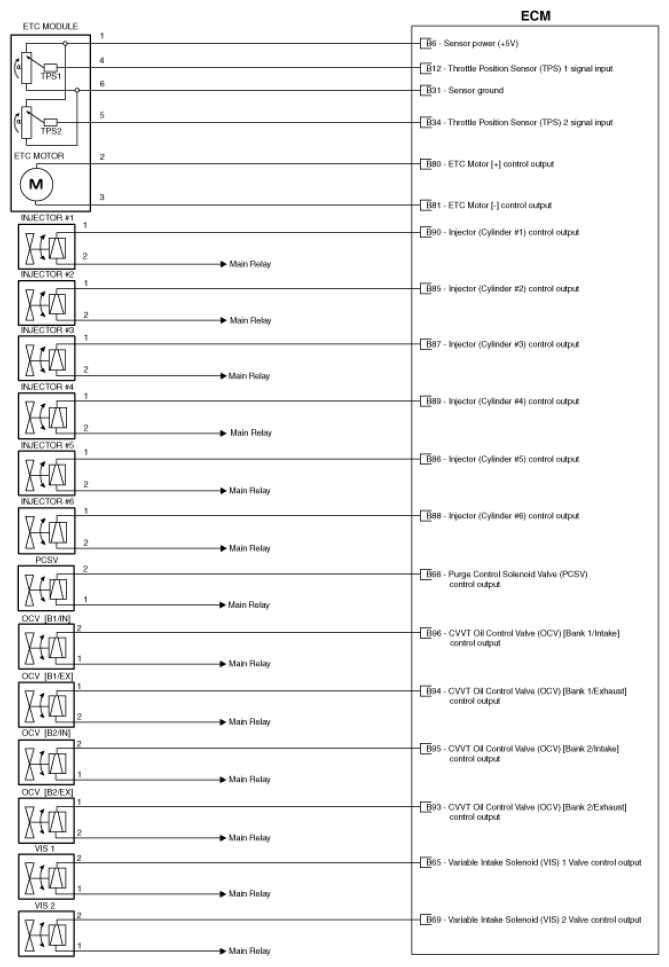

Fig 3: ECM - Circuit Diagram (3 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

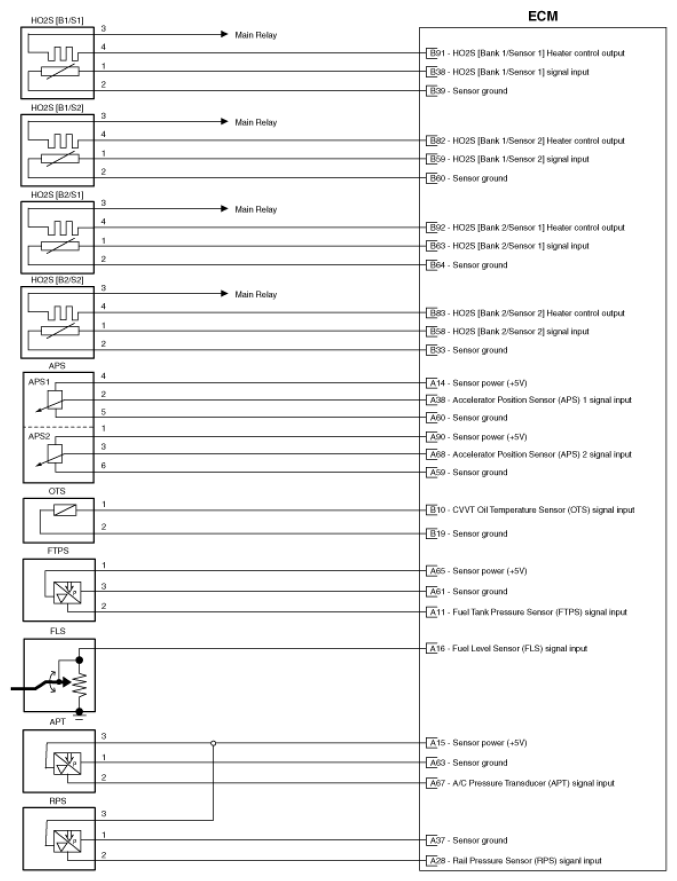

Fig 4: ECM - Circuit Diagram (4 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

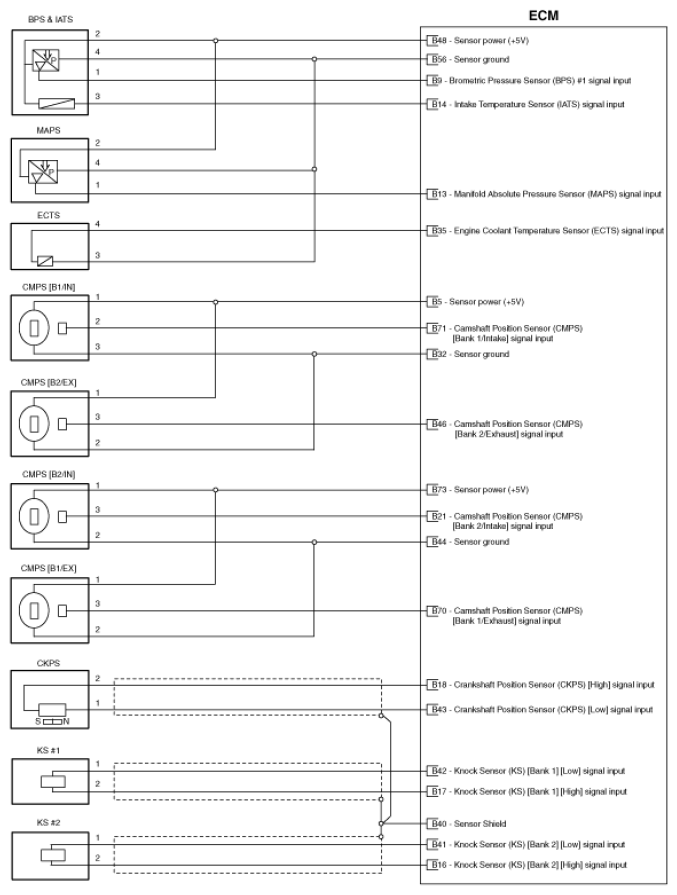

Fig 5: ECM - Circuit Diagram (5 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA
