Repair Procedures: Removal

  1. Turn the ignition switch off and disconnect the battery negative (-) cable.
  2. Remove the glove box housing.

    Refer to "GLOVE BOX HOUSING .

  3. Disconnect the injector drive box (IDB) connector (A).

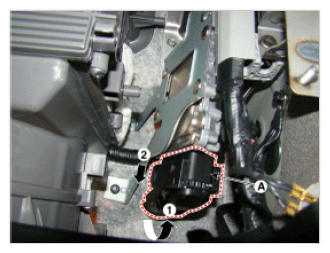

    Fig 1: Identifying Injector Drive Box Connector
    G09270738Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the IDB bracket assembly (A) after removing the bolt and nuts.

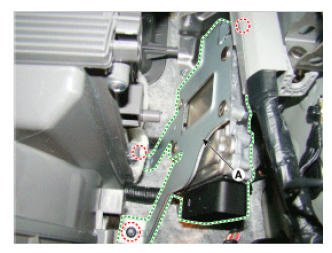

    Fig 2: Identifying IDB Bracket Assembly
    G09270739Courtesy of HYUNDAI MOTOR AMERICA
