Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating GDS
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "Smart key code saving".

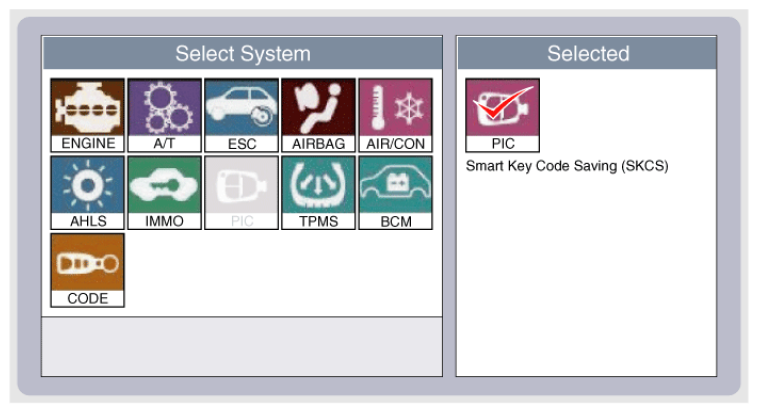

Fig 2: Display - Smart Key Unit
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Selecting Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown below.

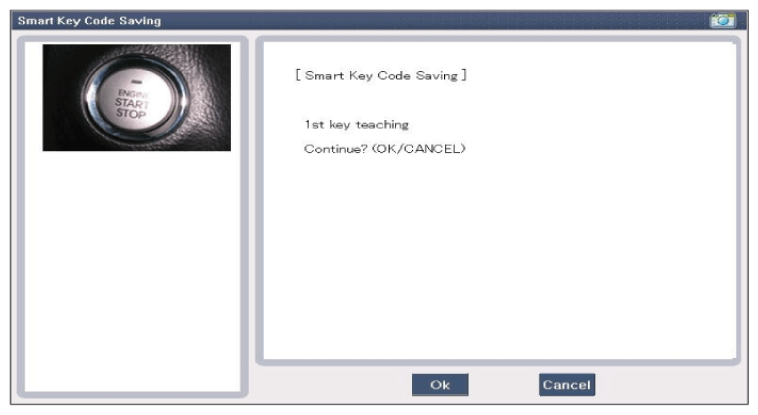

Fig 4: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR CO.
After inserting the teaching key, push "ENTER" key.
Input the "Pin code" for first key teaching.

Fig 5: Display - Smart Key Code Saving Entering Screen
Courtesy of HYUNDAI MOTOR CO.

Fig 6: Display - Smart Key Code Saving Conformation Screen
Courtesy of HYUNDAI MOTOR CO.
Confirm the message "First key teaching completed".

Fig 7: Display - 1st Key Teaching Conformation Screen
Courtesy of HYUNDAI MOTOR CO.

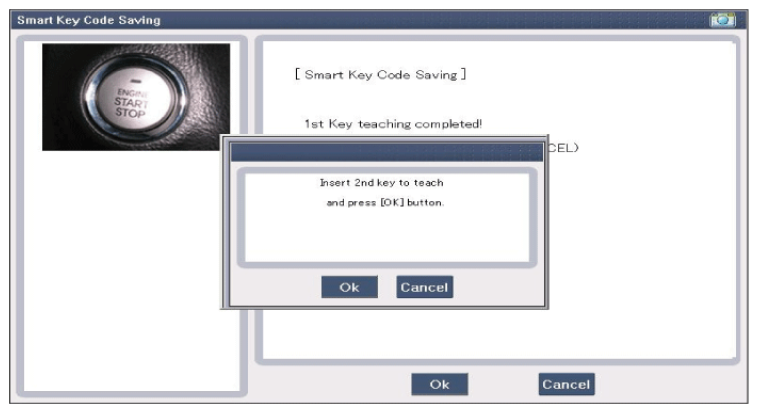

Fig 8: Display - 1st Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR CO.
Input the "Pin code" for second key teaching.

Fig 9: Display - 2nd Key Teaching Conformation Screen
Courtesy of HYUNDAI MOTOR CO.

Fig 10: Display - 2nd Key Teaching Entering Screen
Courtesy of HYUNDAI MOTOR CO.
Confirm the message "Second key teaching completed".

Fig 11: Display - 2nd Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR CO.

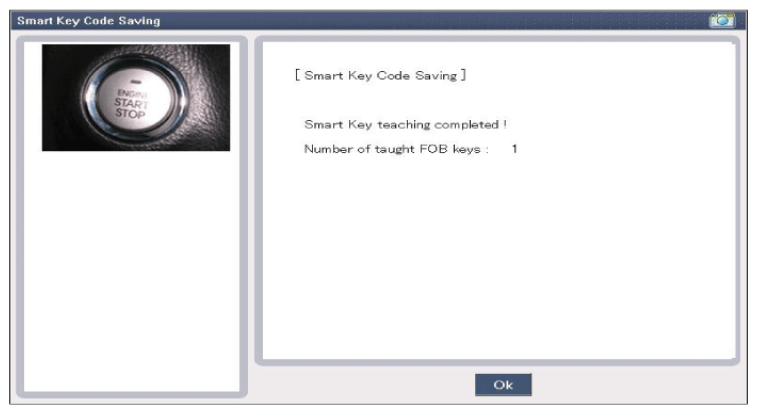

Then the screen will be shown as below when key teaching process is completed.
