Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

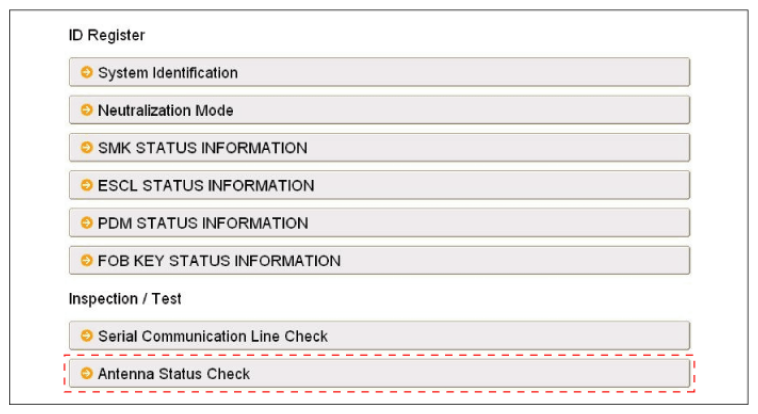

    Fig 1: Selecting Antenna Status Check
    G06875375Courtesy of HYUNDAI MOTOR CO.
  3. After IG ON, select the "Antenna Status Check".

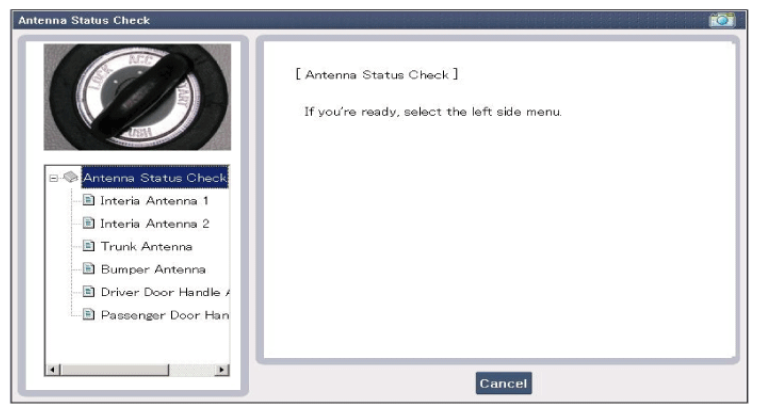

    Fig 2: Display - Antenna Status Check Screen
    G06875376Courtesy of HYUNDAI MOTOR CO.
  4. Set the smart key near the related antenna and operate it with a GDS.

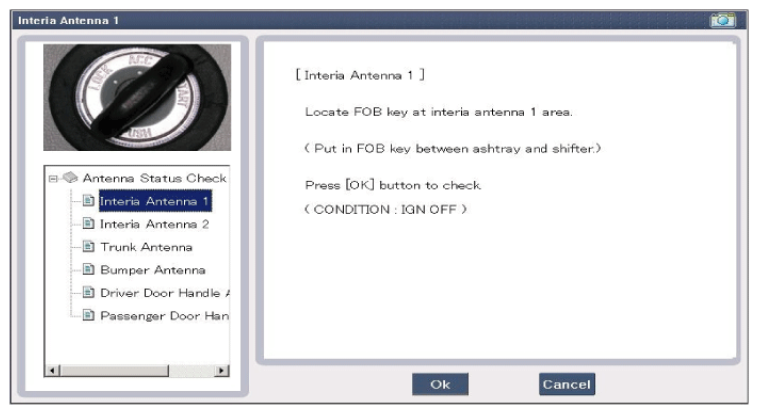

    Fig 3: Display - Antenna Status Check Conformation Screen
    G06875377Courtesy of HYUNDAI MOTOR CO.

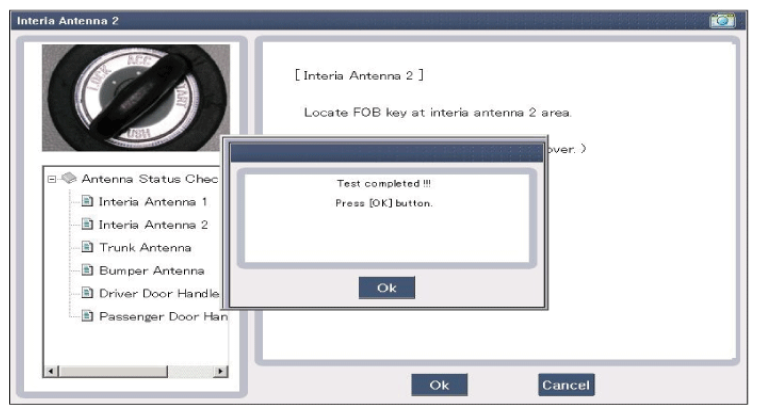

    Fig 4: Display - Antenna Status Check Completed Screen
    G06875378Courtesy of HYUNDAI MOTOR CO.
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    1. INTERIOR Antenna 1
    2. INTERIOR Antenna 2
    3. Trunk antenna
    4. BUMPER/ Trunk Antenna
    5. DRV_DR Antenna
    6. AST_DR Antenna
