Repair procedures: Inspection

Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

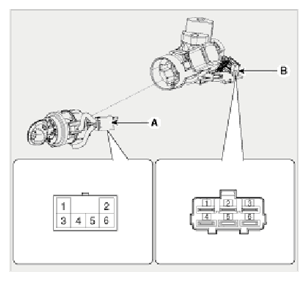

Fig 1: Ignition And Warning Switch Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the terminals.
If continuity is not as specified, replace the switch.

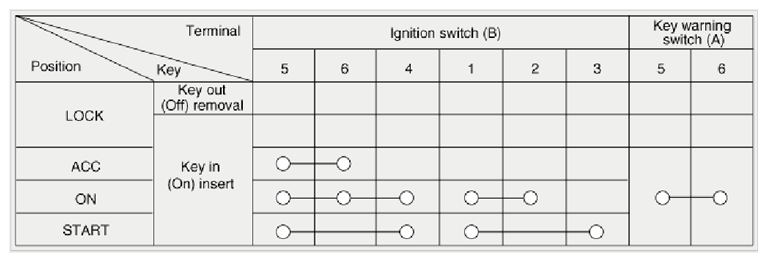

Fig 2: Ignition Switch Continuity Reference Chart
Courtesy of HYUNDAI MOTOR AMERICA
