Signal Waveform & Data

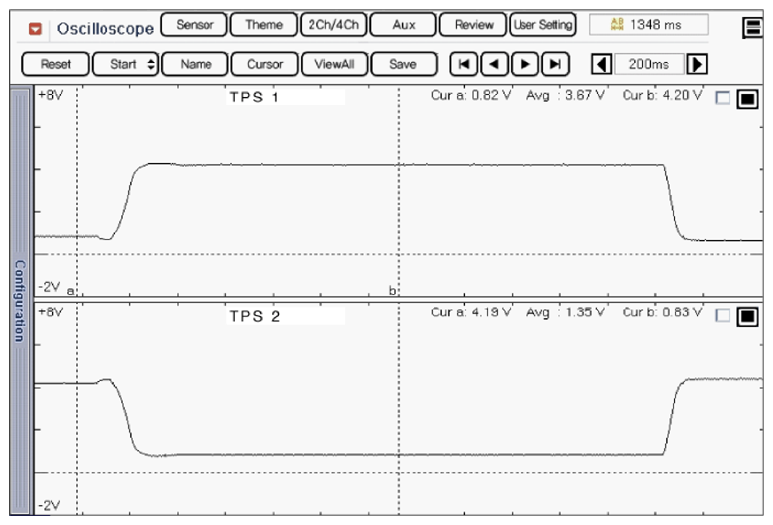

Fig 1: Display - TPS1 & TPS2 Normal Waveform With No Accel Pedal Depressed Under IG ON Condition
G08802303Courtesy of HYUNDAI MOTOR AMERICA
