SRS Control Module Connector End View (M12)

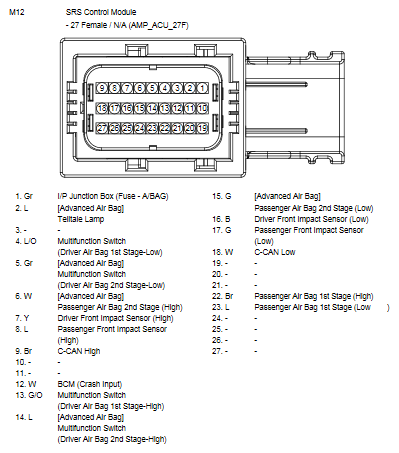

Fig 1: SRS Control Module Connector End View (M12)
G10774377Courtesy of HYUNDAI MOTOR AMERICA
