Repair Procedures: Replacement

Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")
Remove the rear door outside handle.
(Refer to Rear Door - "REAR DOOR OUTSIDE HANDLE ")

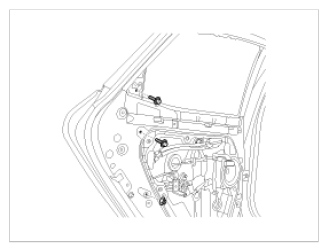

Loosen the rear door channel mounting bolts and nut.

Fig 1: Identifying Rear Door Channel Mounting Bolts And Nut
Courtesy of HYUNDAI MOTOR AMERICA

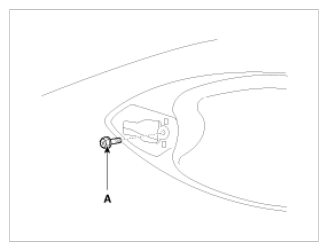

Loosen the mounting bolt (A).

Fig 2: Identifying Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

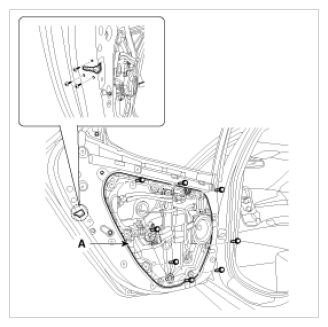

After loosening the rear door module mounting bolts, then remove the rear door module (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 3: Identifying Rear Door Module With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

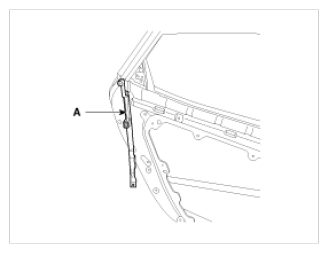

Remove the rear door channel (A).

Fig 4: Identifying Rear Door Channel
Courtesy of HYUNDAI MOTOR AMERICA

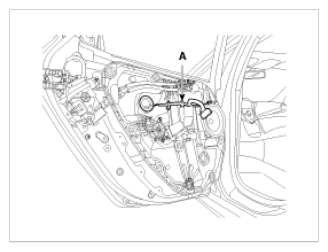

Disconnect the connectors and rear door module wiring harness (A).

Fig 5: Identifying Rear Door Module Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly
