Components and Components Location: Components

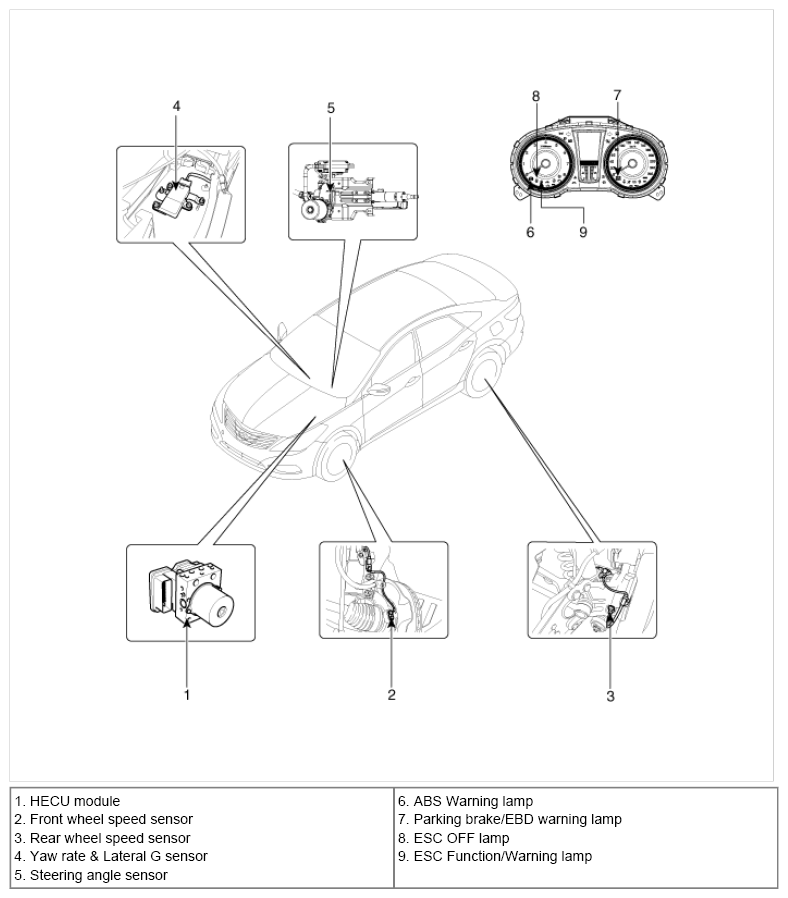

Fig 1: Electronic Stability Control System Components Location
G08810438Courtesy of HYUNDAI MOTOR AMERICA
