Diagnostic Circuit Diagram

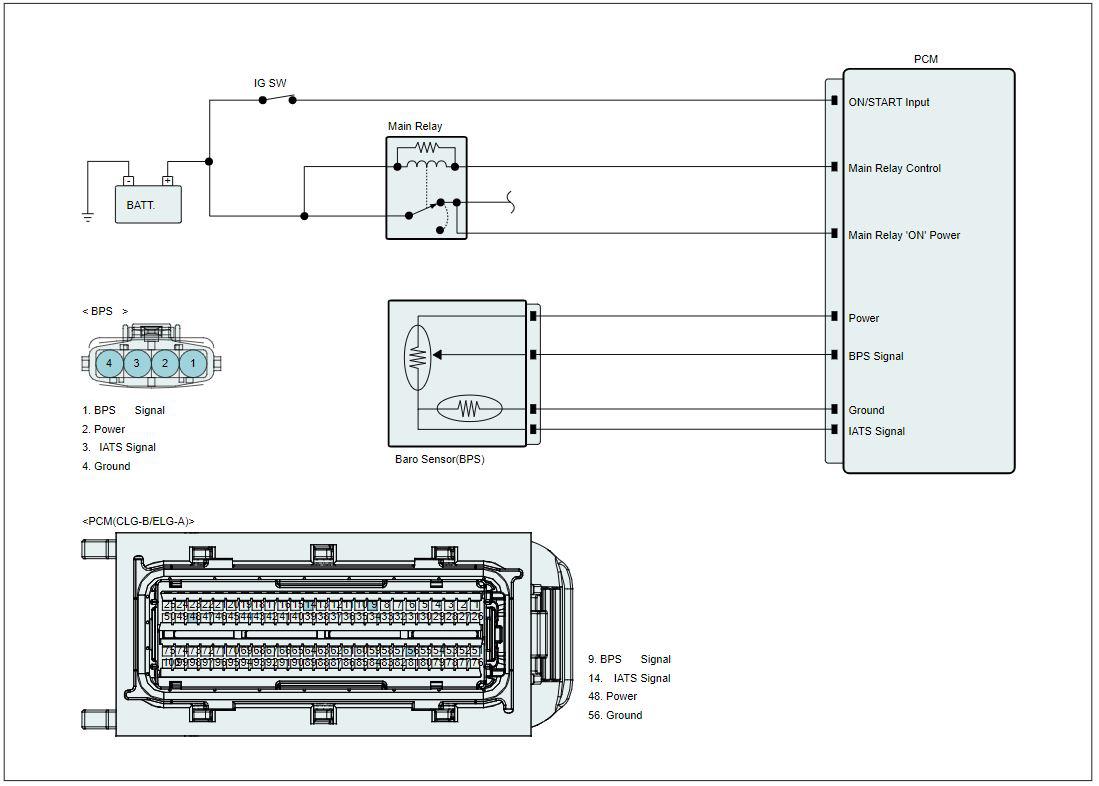

Fig 1: Barometric Pressure Sensor Diagnostic Circuit Diagram
G08817986Courtesy of HYUNDAI MOTOR AMERICA
