Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to "AIR CLEANER ")

  3. Disconnect the ETC module connector (A).

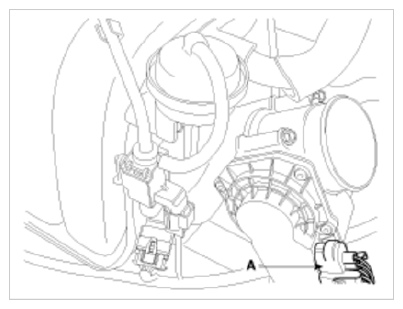

    Fig 1: Identifying ETC Module Connector
    G09885884Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the coolant hoses (B).
  5. Remove the installation bolts (C), and then remove the ETC module from the engine.

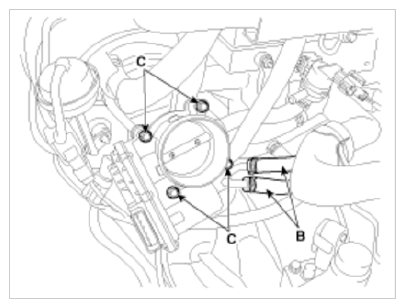

    Fig 2: Identifying ETC Module Connector, Coolant Hoses And Bolts
    G09885885Courtesy of HYUNDAI MOTOR AMERICA
