Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the knock sensor connector (A).

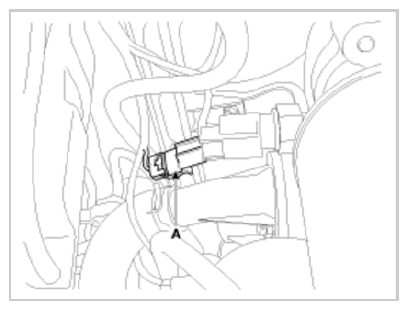

    Fig 1: Identifying Knock Sensor Connector
    G09885913Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the intake manifold.

    (Refer to "INTAKE MANIFOLD ")

  4. Remove the installation bolt (A), and then remove the sensor from the cylinder block.

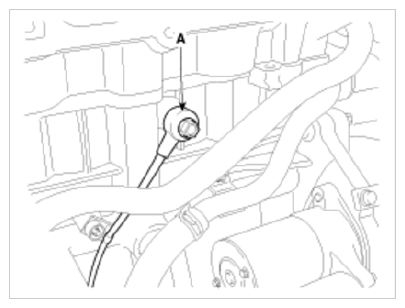

    Fig 2: Identifying Knock Sensor Connector Bolt
    G09885914Courtesy of HYUNDAI MOTOR AMERICA
