Repair procedures: Inspection

  1. Measure the primary coil resistance between terminals (+) and (-).

    Standard value:  0.75 Ω ± 15%

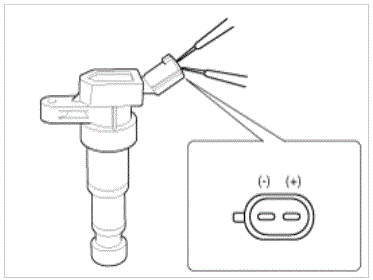

    Fig 1: Measuring Primary Coil Resistance
    G00554146Courtesy of HYUNDAI MOTOR AMERICA
