Repair procedures: Removal

Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
Disconnect the negative (-) battery cable.
Remove the air cleaner assembly and air duct.
(Refer to "AIR CLEANER ")
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the shift cable mounting nut (B).
Tightening torque: 7.8 ~ 11.8 N.m (0.8 ~ 1.2 Kgf.m, 5.7 ~ 8.6 lb-ft)
Disconnect the inhibitor switch connector (A).

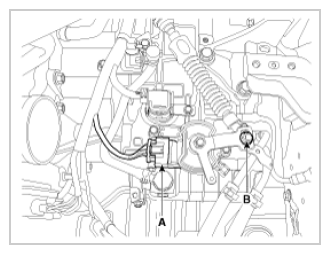

Fig 1: Identifying Inhibitor Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the manual control lever (B) and the washer after removing a nut (A).

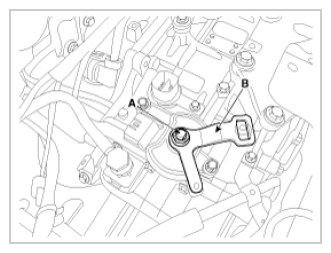

Fig 2: Identifying Manual Control Lever, Washer And Nut
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When installing, affix the manual control lever and the inhibitor switch with Ø5mm (0.1969in.). Then tighten the inhibitor assembly mounting bolts.
Remove the inhibitor assembly (A) after removing the bolts (2ea).
Tightening torque: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

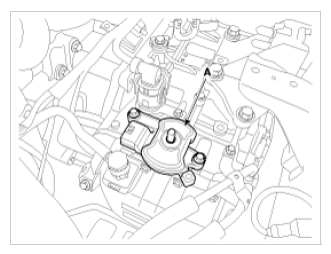

Fig 3: Identifying Inhibitor Assembly
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When installing, tighten the inhibitor assembly mounting bolt lightly, so that necessary adjustments can be made. Tighten to specifications.
