Repair procedures: Removal

Remove the floor console.
(Refer to "FLOOR CONSOLE ASSEMBLY ")

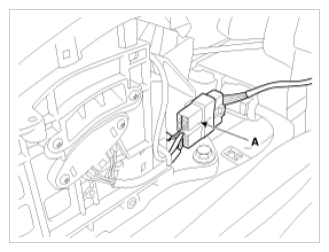

Disconnect the connector (A).

Fig 1: Identifying Connector
Courtesy of HYUNDAI MOTOR AMERICA

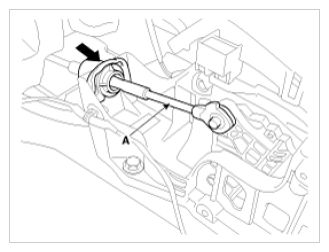

Disconnect the shift control cable (A).

Fig 2: Identifying Shift Control Cable
Courtesy of HYUNDAI MOTOR AMERICA

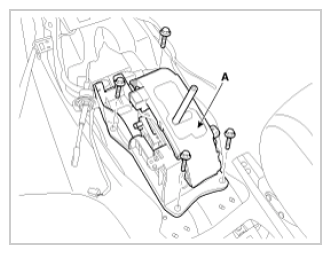

Remove the AT lever (shift lever) assembly (A) by removing the bolts (4ea).
Tightening torque: 8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 3: Identifying AT Shift Lever Assembly And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE: Make sure vehicle does not roll before setting room side shift lever and Automatic Transaxle (AT) side.
