System Inspection

Coolant Level Inspection
1. Check the cooling system coolant level.
2. Is the coolant in the reservoir at the proper level?
  YES
  - Go to next step as indicated below.
  NO
  - Repair or add engine coolant as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Thermostat Inspection
1. Check if the thermostat bypass valve is stuck in the open position or if the correct type of thermostat was installed. Replace thermostat as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
2. Check the valve opening temperature of the thermostat.
  Specification (Valve opening temperature): 80~84°C (176~183°F)
3. If the opening temperature is not as specified, Replace thermostat as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure. If OK, go to next step as indicated below.

ECT Sensor Inspection

Measure the resistance between signal terminal and ground terminal of ECTS connector. (Component side)

RESISTANCE SPECIFICATION

2013

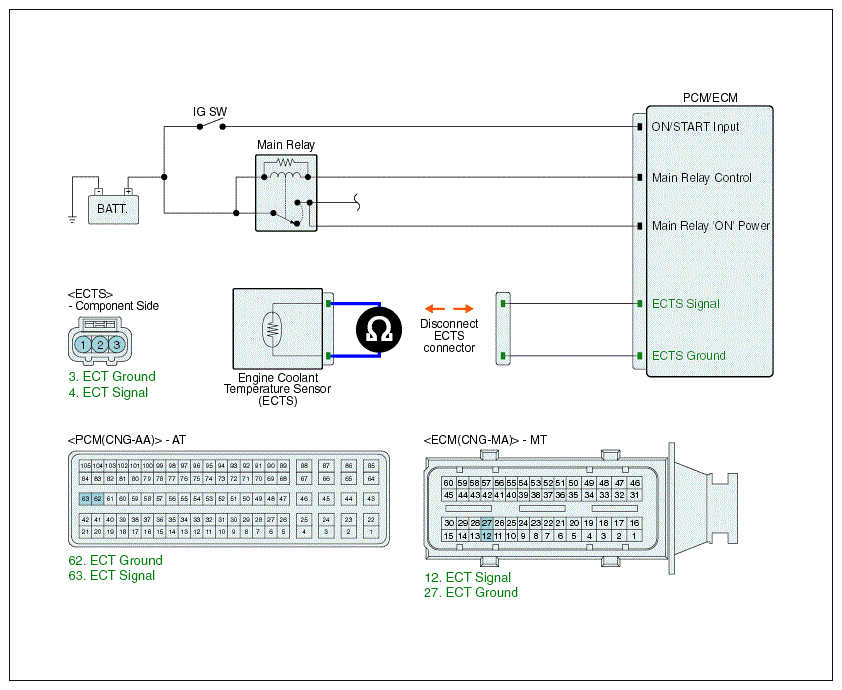

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram

Courtesy of HYUNDAI MOTOR AMERICA

2014

Refer to appropriate SYSTEM WIRING DIAGRAM article

Is resistance within the specification?
YES
- Go to next step as indicated below.
NO
- Check ECTS for contamination, deterioration, or damage. Substitute with a known-good ECTS and check for proper operation. If the problem is corrected, replace ECTS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
