Components Location

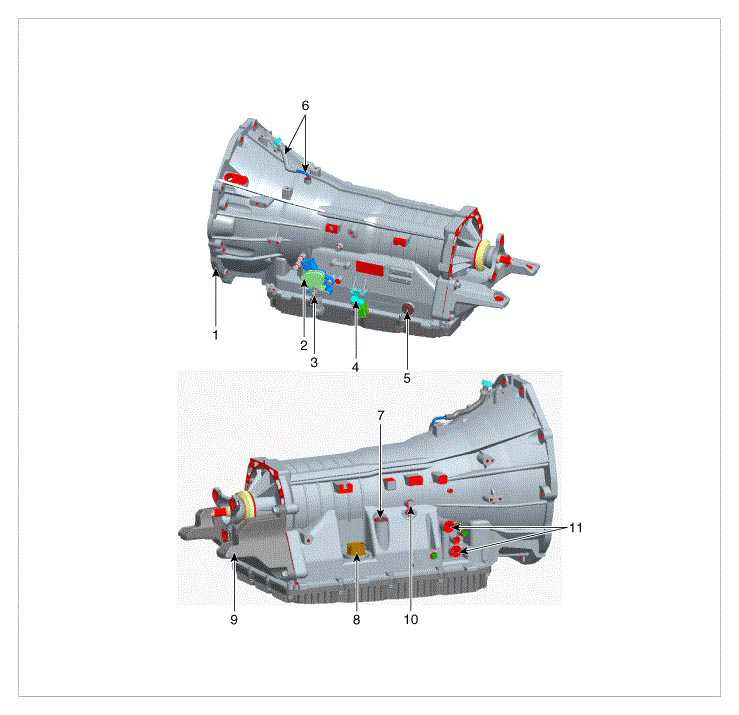

Fig 1: Automatic Transaxle Components Location
G08819282Courtesy of HYUNDAI MOTOR AMERICA
LIST OF COMPONENTS

1. Automatic transmission case 7. Oil injection hall (in factory)
2. Inhibitor switch 8. E Module connector
3. Manual control lever 9. Support bracket
4. Shift cable bracket 10. Check plug
5. Oil injection hall 11. Oil cooler port
6. Air breather hose & pipe -
