Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the air cleaner assembly. (Refer to "ENGINE AND TRANSAXLE ASSEMBLY ")

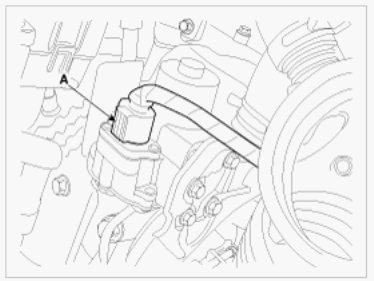

Disconnect the EWGA connector (A).

Fig 1: Identifying EWGA Connector
Courtesy of HYUNDAI MOTOR CO.

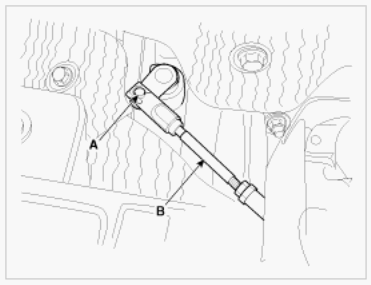

Remove the shaft link assembly (B) after removing the C-ring (A).

Fig 2: Identifying Shaft Link Assembly & C-Ring
Courtesy of HYUNDAI MOTOR CO.

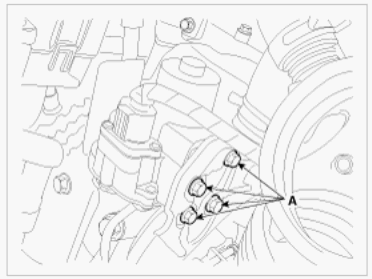

Remove the EWGA after removing the bolts (A).

Fig 3: Identifying EWGA Bolts
Courtesy of HYUNDAI MOTOR CO.

CAUTION: When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
