Hood Switch Connector End View (E85)

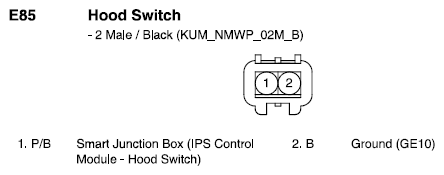

Fig 1: Hood Switch Connector End View (E85)

G10788045

Courtesy of HYUNDAI MOTOR AMERICA
