Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Lift the vehicle.

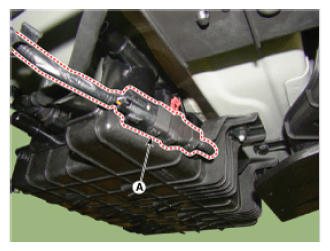

Disconnect the canister close valve extension connector (A).

Fig 1: Identifying Canister Close Valve Extension Connector
Courtesy of HYUNDAI MOTOR AMERICA

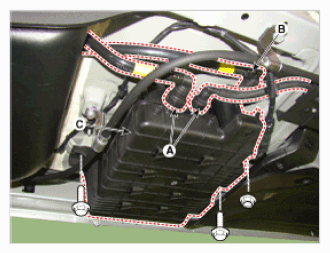

Disconnect the vapor tube quick-connector (A) from the canister.
Disconnect the ventilation tube quick-connector (B) from the fuel tank air filter.
Remove the canister assembly (C) after removing the mounting bolts and nut.

Fig 2: Identifying Vapor Tube Quick-Connector And Ventilation Tube Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA

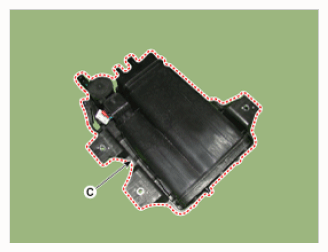

Fig 3: Identifying Canister Assembly
Courtesy of HYUNDAI MOTOR AMERICA

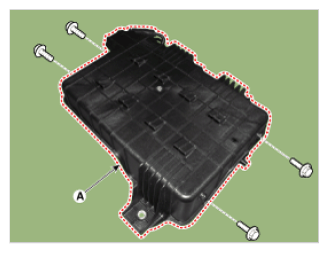

Remove the canister protector (A) from the canister (B) after removing the installation 4 bolts.

Fig 4: Identifying Canister Protector And Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

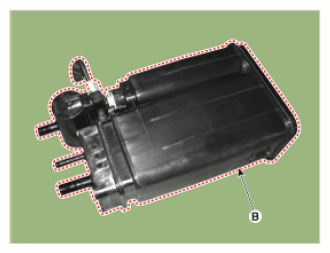

Fig 5: Identifying Canister
Courtesy of HYUNDAI MOTOR AMERICA

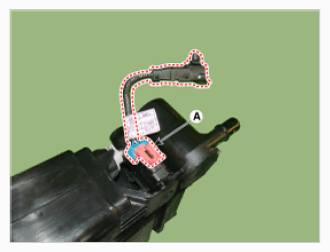

Remove the canister close valve connector (A).

Fig 6: Identifying Canister Close Valve Connector
Courtesy of HYUNDAI MOTOR AMERICA

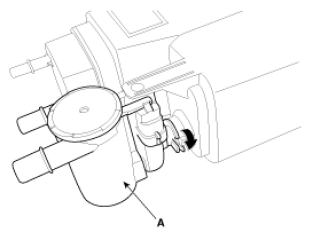

Remove the fuel tank air filter & canister close valve assembly (A) after rotating it in the direction of the arrow in the figure.

Fig 7: Removing Fuel Tank Air Filter & Canister Close Valve Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.

Fig 8: Identifying Fuel Tank Air Filter Lever
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Separating Fuel Tank Air Filter Canister Close Valve
Courtesy of HYUNDAI MOTOR AMERICA
