Repair Procedures: Removal

Remove the floor console.
Refer to FLOOR CONSOLE ASSEMBLY .
Remove the air duct.
Disconnect the sports mode connector (A).

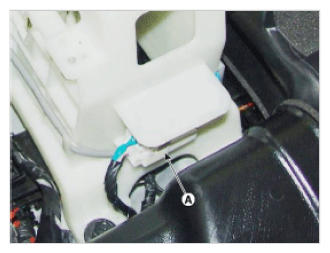

Fig 1: Identifying Sports Mode Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the shift cable (A).

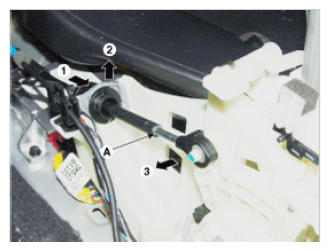

Fig 2: Disconnecting Shift Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lever assembly (A) by removing the bolts (C-4ea).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

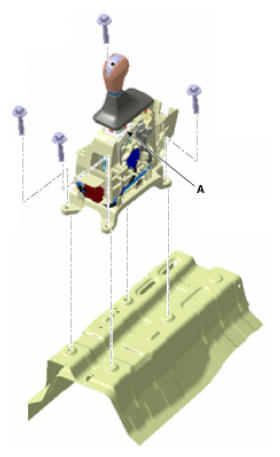

Fig 3: Identifying Shift Lever Assembly And Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
