Component Location

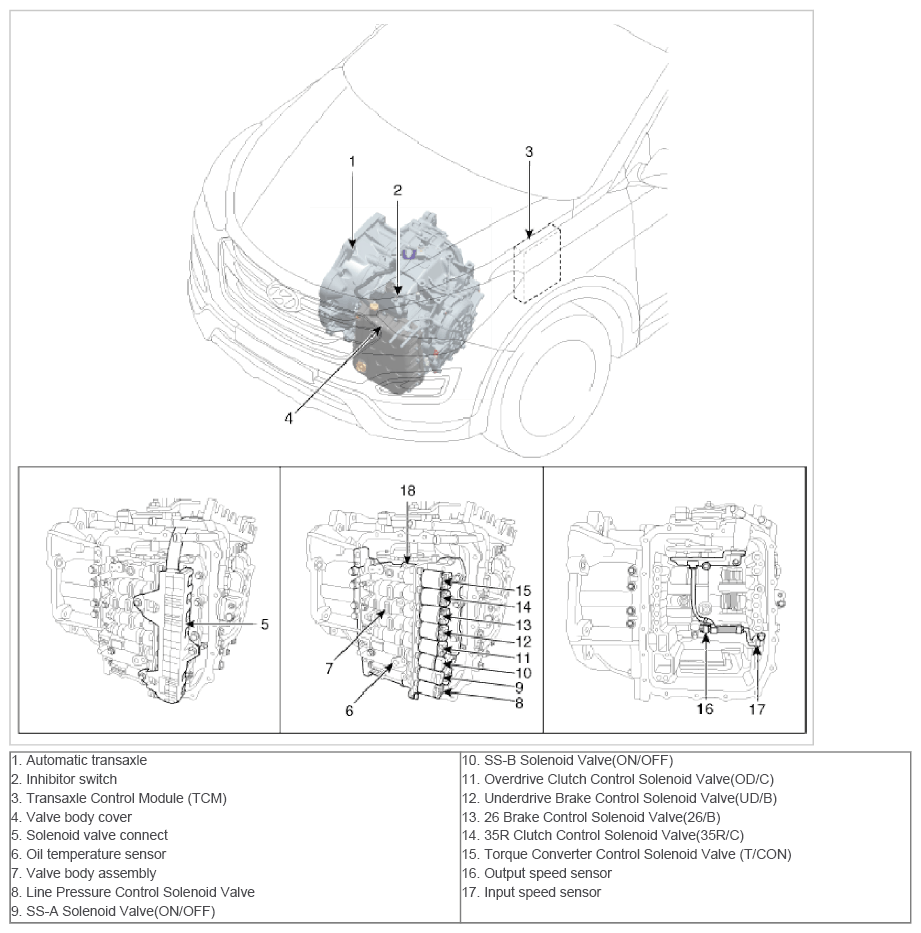

Fig 1: Automatic Transaxle System Component Location
G09365213Courtesy of HYUNDAI MOTOR AMERICA

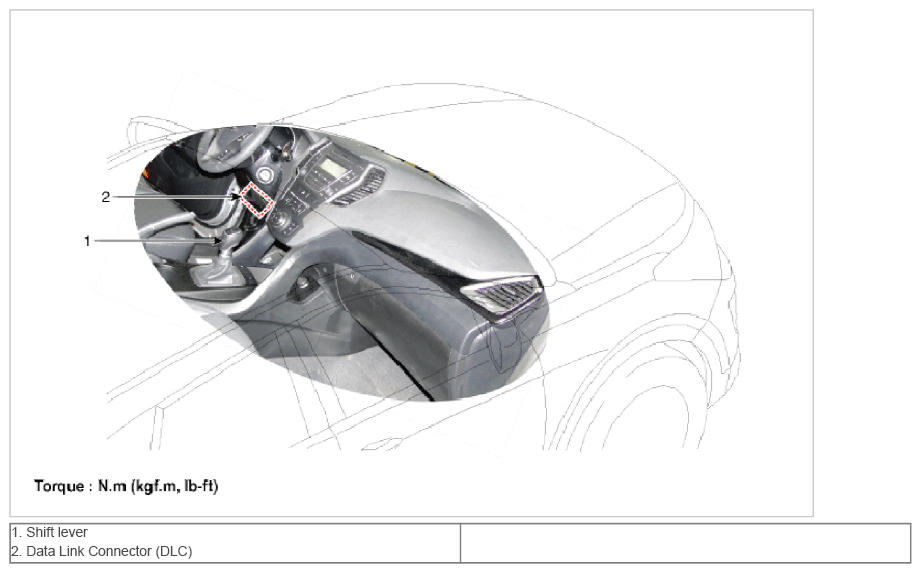

Fig 2: Identifying Shift Lever And Data Link Connector
G09365214Courtesy of HYUNDAI MOTOR AMERICA
