Connector Pin Information

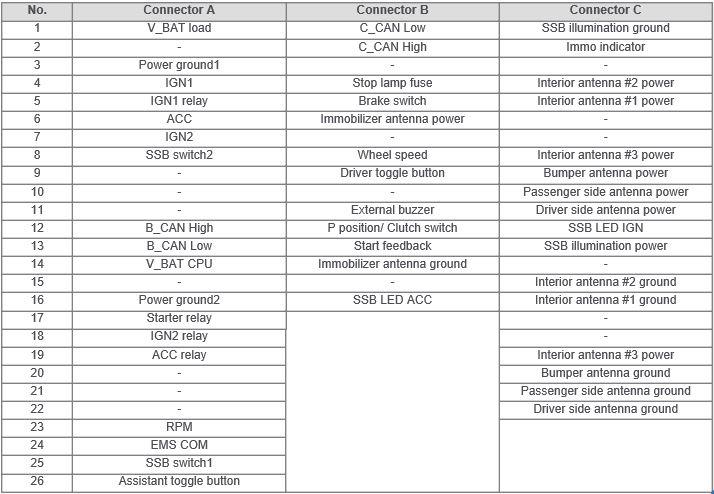

Fig 1: Smart Key Unit Connectors Terminal Identification
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
