Driver Auto Up/Down

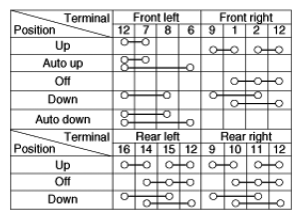

Fig 1: >Main Power Window Switch Connector Terminals Continuity Chart (Driver Auto Up/Down)
G06874830Courtesy of HYUNDAI MOTOR CO.
