Signal Waveform

WARNING: This page is about a different variant/trim than selected.

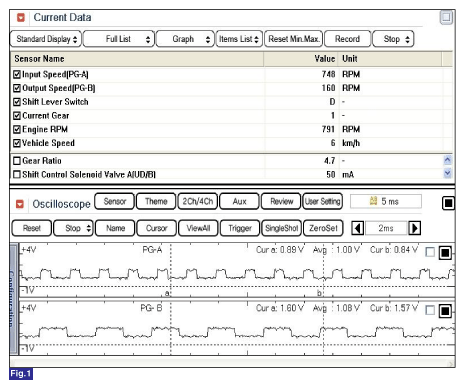

Fig 1: Display - Input/Output Speed Sensor At Low Speed
G09802515Courtesy of HYUNDAI MOTOR AMERICA

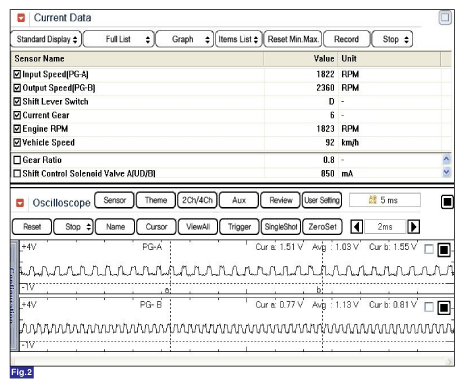

Fig 2: Display - Input/Output Speed Sensor At High Speed
G09802516Courtesy of HYUNDAI MOTOR AMERICA
