Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

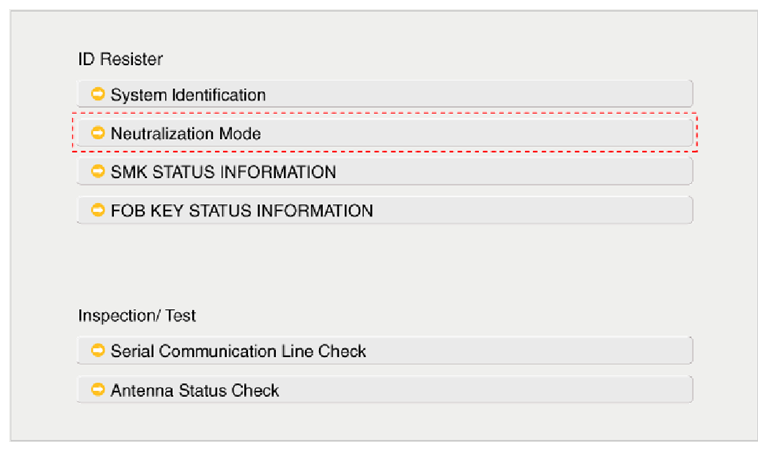

Fig 1: Display - Neutralization Mode Selection Screen
G09134463Courtesy of HYUNDAI MOTOR AMERICA

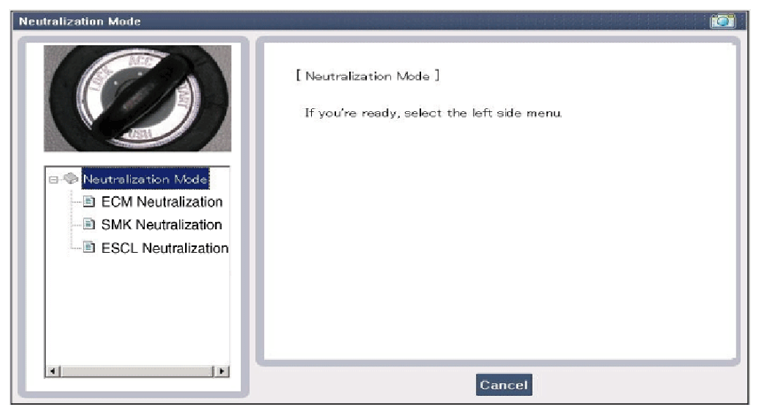

Fig 2: Display - Neutralization Status Screen
G09134464Courtesy of HYUNDAI MOTOR AMERICA

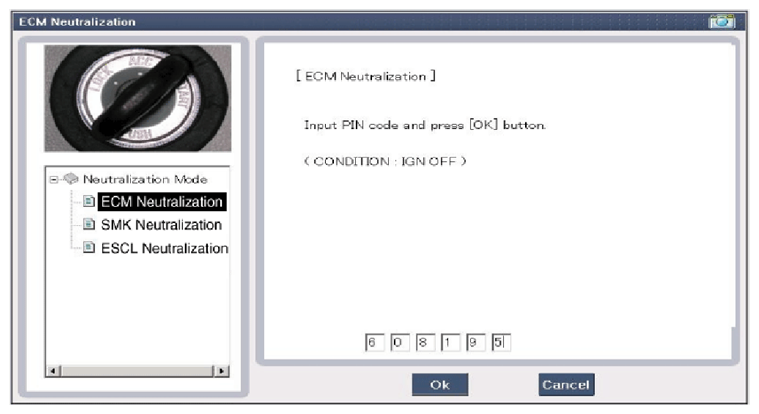

Fig 3: Display - ECM Neutralization Screen
G09134465Courtesy of HYUNDAI MOTOR AMERICA

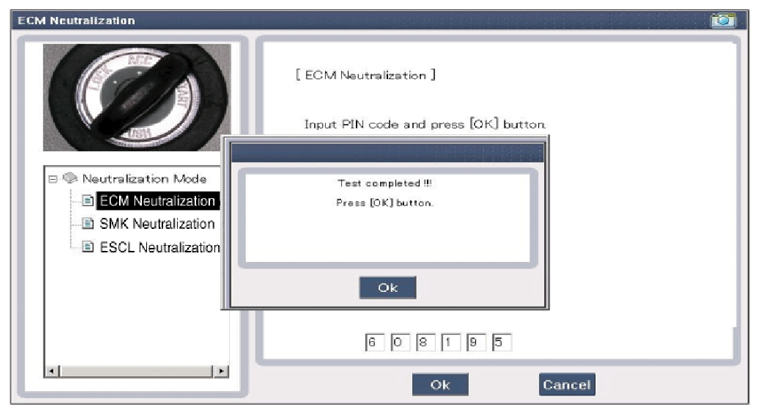

Fig 4: Display - ECM Neutralization Confirmation Screen
G09134466Courtesy of HYUNDAI MOTOR AMERICA
Fig 5: Display - ECM Neutralization Screen
G09134467Courtesy of HYUNDAI MOTOR AMERICA
Fig 6: Display - ECM Neutralization Screen
G09134468Courtesy of HYUNDAI MOTOR AMERICA

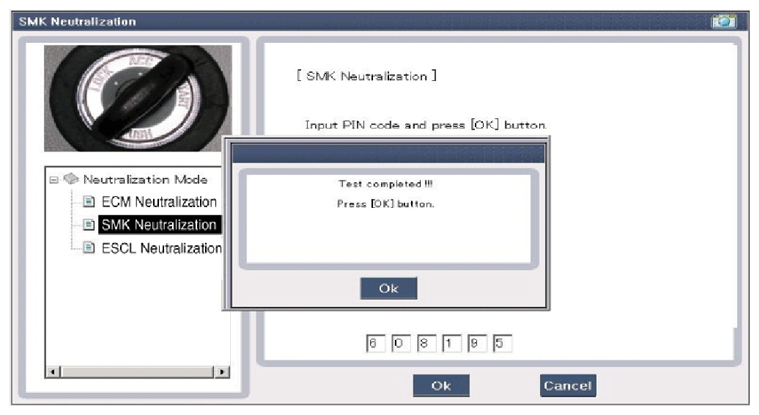

Fig 7: Display - ECM Neutralization Test Confirmation Screen
G09134469Courtesy of HYUNDAI MOTOR AMERICA
INPUT SWITCH LIST

No Item name Unit
1 SSB switch 2 -
2 ACC -
3 IGN 1 -
4 Gear 'P' Position -
5 Brake switch -
6 FL Door Lock Button -
7 FR Door Lock Button -
8 Trunk Lid switch -
9 Battery Voltage -
10 Alternator Voltage -
11 KEY out Indicator Lamp -
12 Immobilizer Lamp -
13 External Buzzer -
ACTUATOR LIST

No. Item name Condition
1 Immo. indicator Lamp Ignition switch ON Engine off
2 External Buzzer Ignition switch ON Engine off
3 Interior Antenna 1 Active Ignition switch ON Engine off
4 Interior Antenna 2 Active Ignition switch ON Engine off
5 Trunk Antenna Active Ignition switch ON Engine off
6 Bumper Antenna Active Ignition switch ON Engine off
7 DRV DR Antenna Active Ignition switch ON Engine off
8 AST DR Antenna Active Ignition switch ON Engine off
