Component (1)

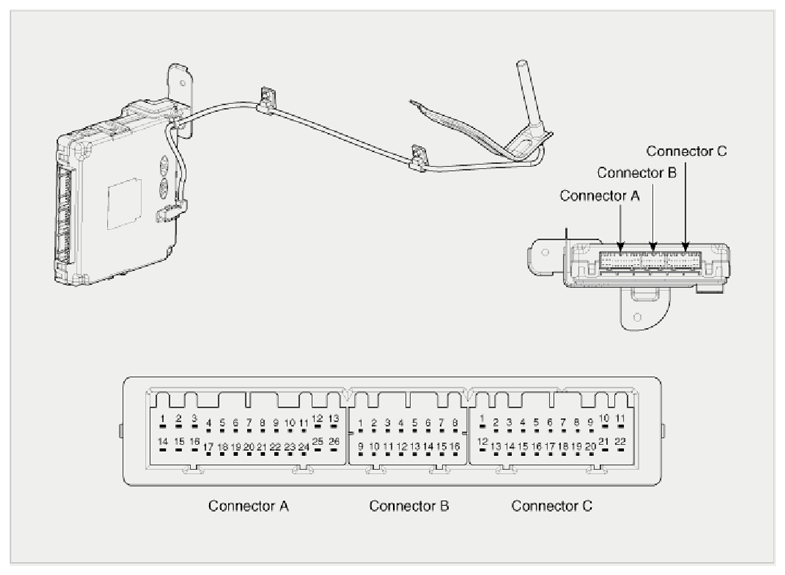

CONNECTOR PIN INFORMATION
| No. | Connector A (26 pins) | No. | Connector B (16 pins) | No. | Connector C (22 pins) |
|---|---|---|---|---|---|
| 1 | Battery power load | 1 | CANL | 1 | Start/Stop button switch ILL |
| 2 | - | 2 | CANH | 2 | Immobilizer IND |
| 3 | Power ground 1 | 3 | - | 3 | Start/Stop button LED OFF |
| 4 | IGN 1 | 4 | Stop lamp fuse | 4 | Interior antenna #2 power |
| 5 | IGN 1 relay | 5 | Brake switch | 5 | Interior antenna #1 power |
| 6 | ACC | 6 | Immobilizer antenna power | 6 | - |
| 7 | IGN 2 | 7 | - | 7 | - |
| 8 | Start/Stop button switch 2 | 8 | Wheel speed | 8 | Trunk antenna power |
| 9 | - | 9 | Driver toggle button | 9 | Bumper antenna power |
| 10 | - | 10 | - | 10 | Assistant antenna power |
| 11 | ESCL COM | 11 | External buzzer | 11 | Driver antenna power |
| 12 | CANH | 12 | P position/Clutch switch | 12 | SSB LED IGN |
| 13 | CANL | 13 | Start feedback | 13 | SSB illumination power |
| 14 | Battery CPU | 14 | Immobilizer antenna ground | 14 | - |
| 15 | - | 15 | Diagnostic-K | 15 | Interior antenna #2 ground |
| 16 | Power ground 2 | 16 | Start/Stop button switch LED | 16 | Interior antenna #1 ground |
| 17 | Starter relay | 17 | - | ||
| 18 | IGN 2 relay | 18 | - | ||
| 19 | ACC relay | 19 | Trunk antenna ground | ||
| 20 | - | 20 | Bumper antenna ground | ||
| 21 | Trunk lid switch | 21 | Assistant antenna ground | ||
| 22 | - | 22 | Driver antenna ground | ||
| 23 | RPM | ||||
| 24 | EMS COM | ||||
| 25 | Start/Stop button switch 1 | ||||
| 26 | Assistant toggle button |
