Tailgate Switch

Check for continuity between the Trunk lid open switch terminals.
[with Back View Camera]

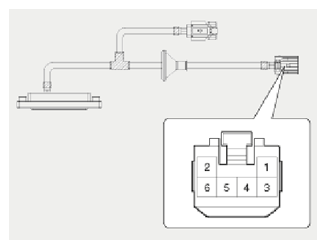

Fig 1: Identifying Trunk Lid Open Switch Connector Terminals (With Back View Camera)
Courtesy of HYUNDAI MOTOR AMERICA
1. Ground
2. Tailgate switch
[without Back View Camera]

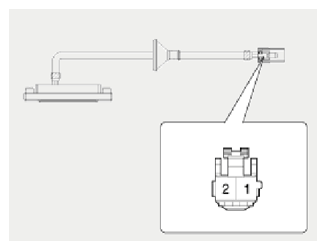

Fig 2: Identifying Trunk Lid Open Switch Connector Terminals (Without Back View Camera)
Courtesy of HYUNDAI MOTOR AMERICA
1. Ground (Tailgate)
2. Tailgate switch
3. Ground (Back View Camera)
4. Power
5. V-OUT
6. V-GND
If continuity is not specified, inspect the switch

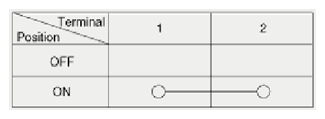

Fig 3: Trunk Lid Open Switch Connector Terminals Continuity Reference Chart
Courtesy of HYUNDAI MOTOR AMERICA
