Door Outside Handle

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to "FRONT DOOR ")

  3. Remove the door outside handle connector.

    [Driver]

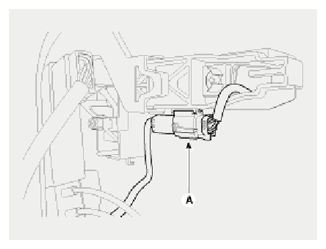

    Fig 1: Identifying Door Outside Handle Connector (Driver)
    G09134495Courtesy of HYUNDAI MOTOR AMERICA

    [Assistant]

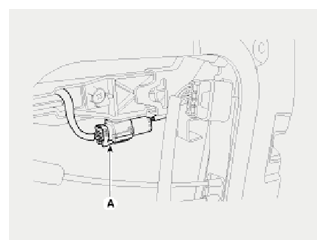

    Fig 2: Identifying Door Outside Handle Connector (Assistant)
    G09134496Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the outside handle cover (A) after loosening the mounting bolt.

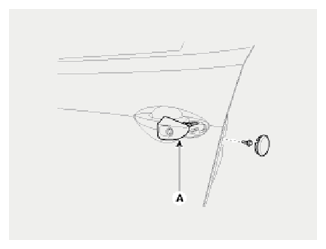

    Fig 3: Identifying Outside Handle Cover And Mounting Bolt
    G09134497Courtesy of HYUNDAI MOTOR AMERICA
