Multifunction Switch (Remote Control) Connector End View (M02-R)

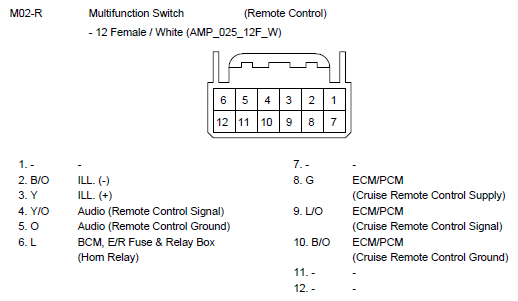

Fig 1: Multifunction Switch (Remote Control) Connector End View (M02-R)
G10774622Courtesy of HYUNDAI MOTOR AMERICA
