Wave Form

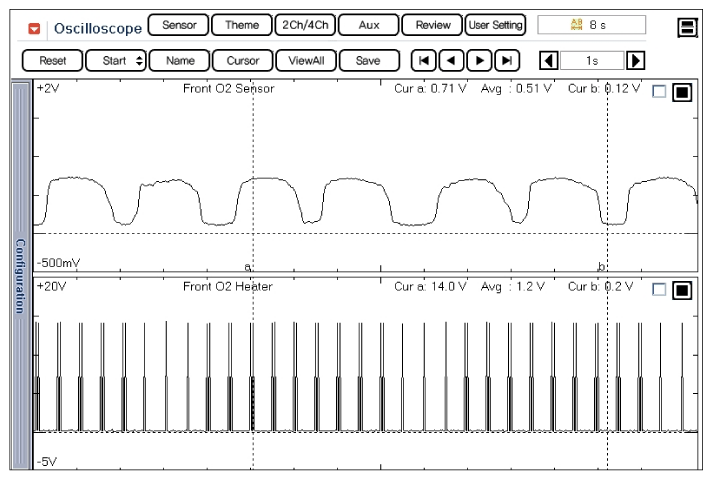

Fig 1: Front O2 Sensor Signal Waveform
G10367449Courtesy of HYUNDAI MOTOR AMERICA

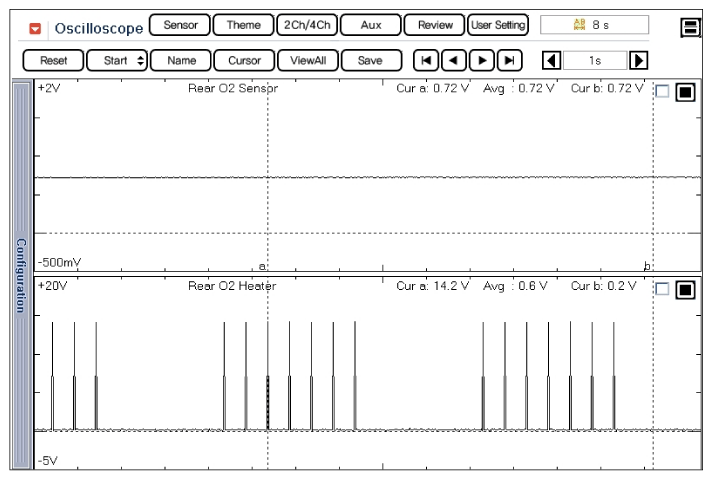

Fig 2: Rear O2 Sensor Signal Waveform
G10367450Courtesy of HYUNDAI MOTOR AMERICA
