Signal Waveform

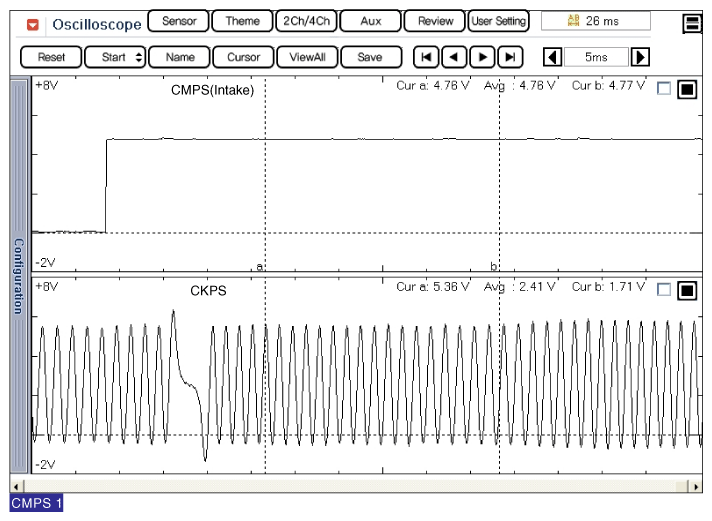

Fig 1: Display - CMPS 1 Troubleshooting Signal Waveform Screen
G10544309Courtesy of HYUNDAI MOTOR AMERICA

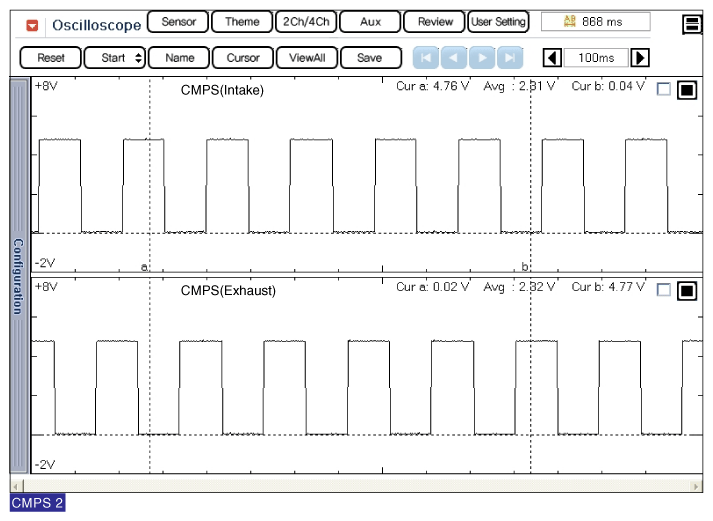

Fig 2: Display - CMPS 2 Troubleshooting Signal Waveform Screen
G10544310Courtesy of HYUNDAI MOTOR AMERICA
