Components and Components Location: Components

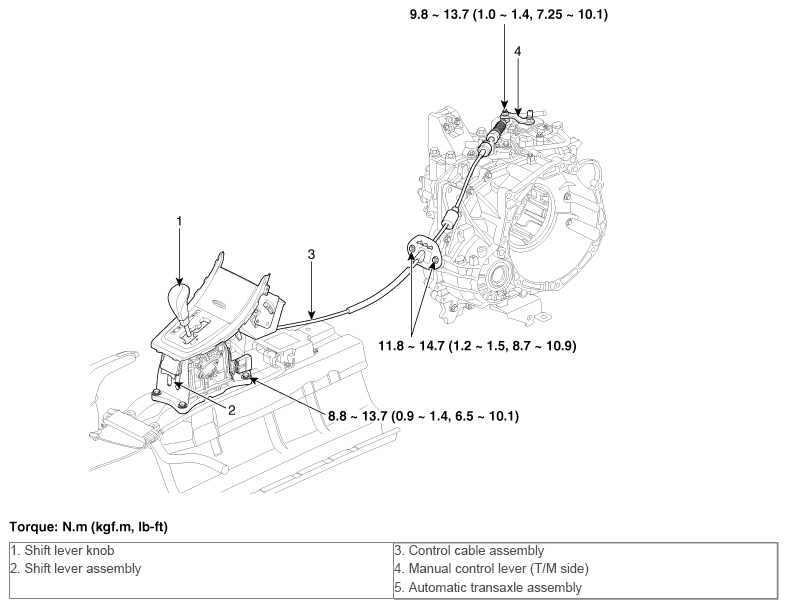

Fig 1: Shift Lever Related Components With Torque Specifications
G10549049Courtesy of HYUNDAI MOTOR AMERICA
