Circuit Diagram

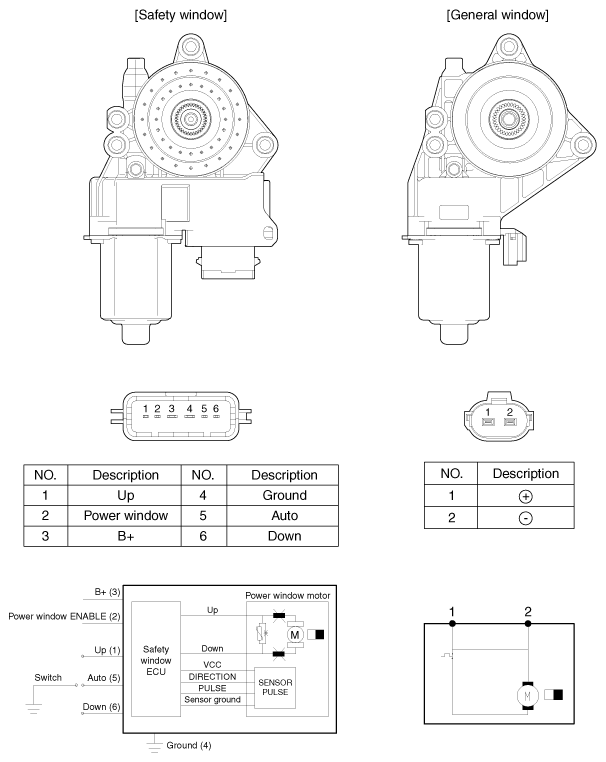

Fig 1: Power Window Motor Schematic Diagram And Connector Terminal Identification
G10531054Courtesy of HYUNDAI MOTOR AMERICA
