FOB Status Check: Notes

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

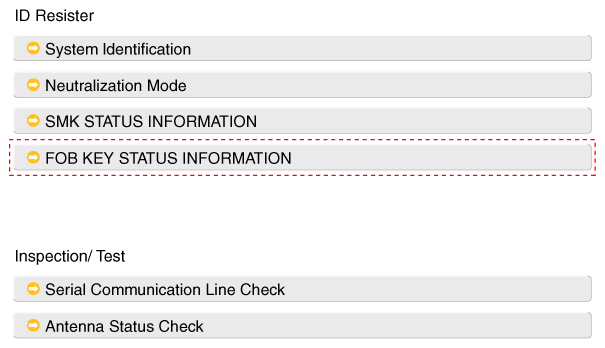

    Fig 1: Display - FOB Key Status Information ID Register Screen
    G10387004Courtesy of HYUNDAI MOTOR AMERICA

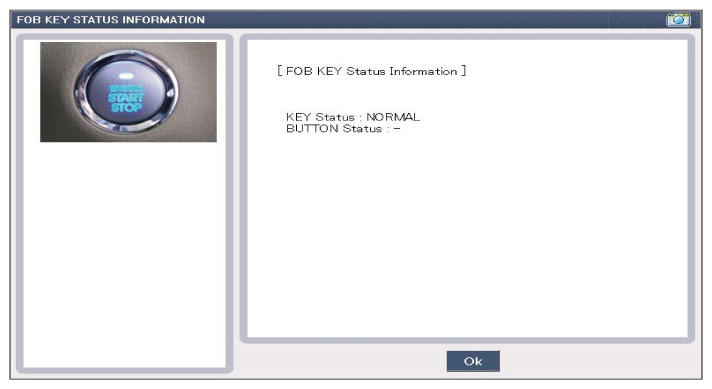

    Fig 2: Display - FOB Key Status Information Screen
    G10387005Courtesy of HYUNDAI MOTOR AMERICA
