Monitoring DTC Status

WARNING: This page is about a different car, the 2016 Hyundai Genesis and 2015 Hyundai Genesis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to "DATA LINK CONNECTOR (DLC)".
  2. IG Key "ON", Engine "OFF".
  3. Select "Diagnostic Trouble Codes (DTC)  " with GDS.
  4. Monitor the Diagnostic Trouble Code and present of the trouble code.
  5. Erase the DTC.

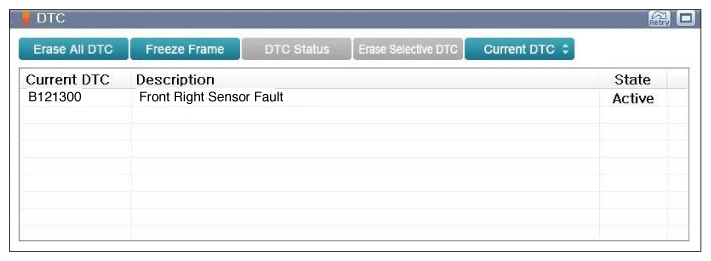

    Fig 1: Screen Display - DTC Information
    G10456233Courtesy of HYUNDAI MOTOR AMERICA
  6. Is the DTC displayed again?

    YES

    NO

    • Fault is intermittent caused by poor contact in "BCM" or "FRONT PARKING ASSIST SENSOR RH"'s connector or was repaired and "BCM" memory was not cleared.
    • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    • Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
