Communication Devices
>>
Power Liftgate Module
>>
Power Liftgate Unit
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

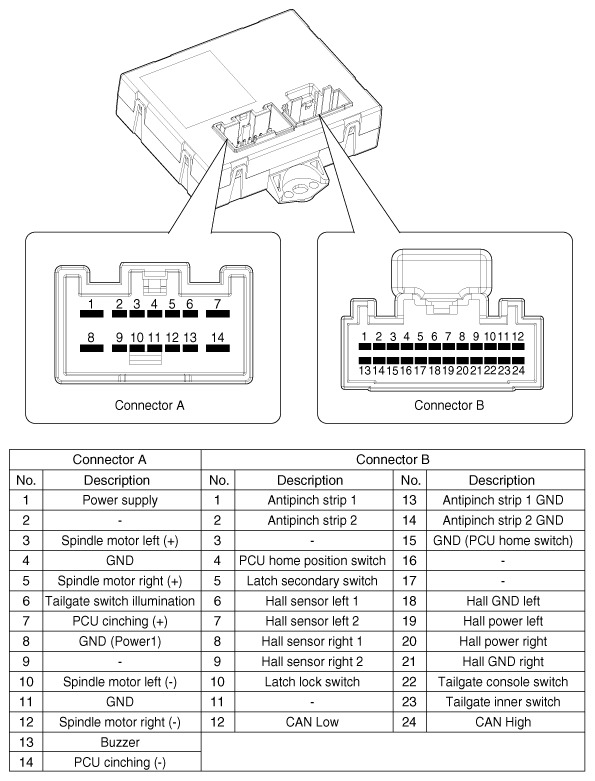

Fig 1: Power Liftgate Unit Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
