Components and Components Location: Components

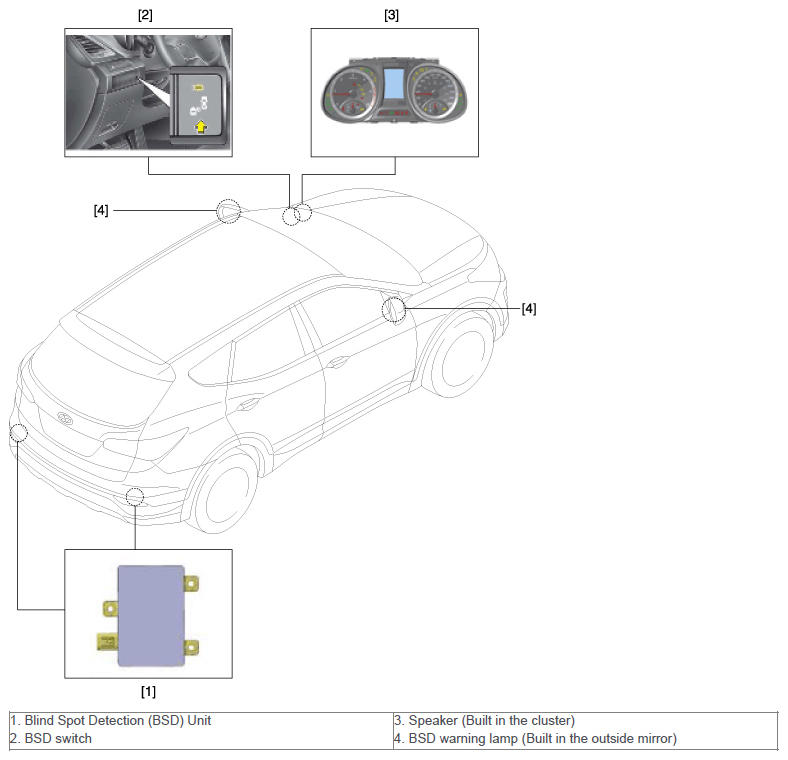

Fig 1: Blind Spot Detection System Components
G10577269Courtesy of HYUNDAI MOTOR AMERICA
