Circuit Diagram

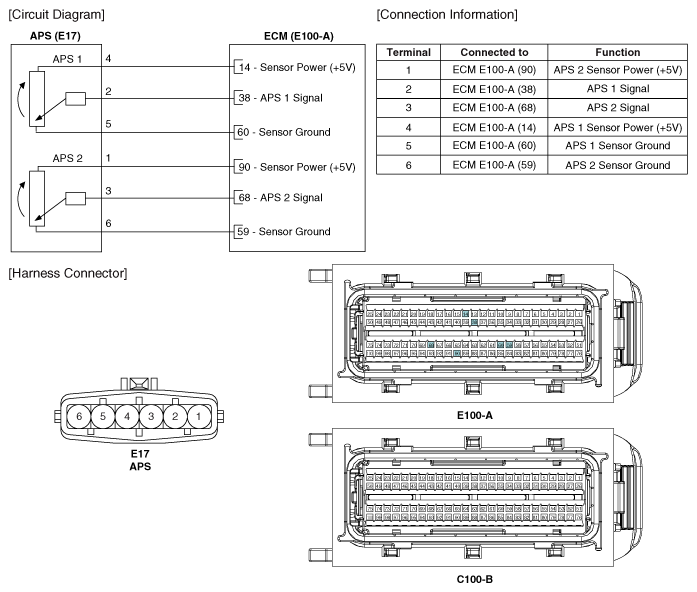

Fig 1: Accelerator Position Sensor - APS - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
