Santa Fe XL Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Crankshaft Position Sensor - CKPS
>>
Troubleshooting
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform

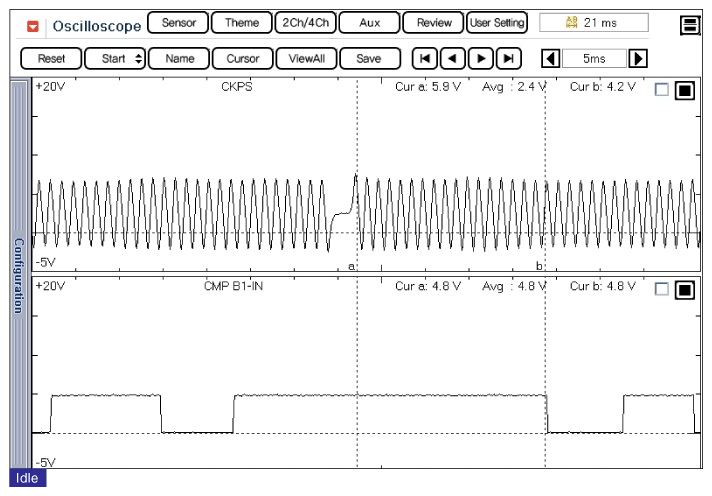

Fig 1: Crankshaft Position Sensor - CKPS - Signal Waveform
