Components Location

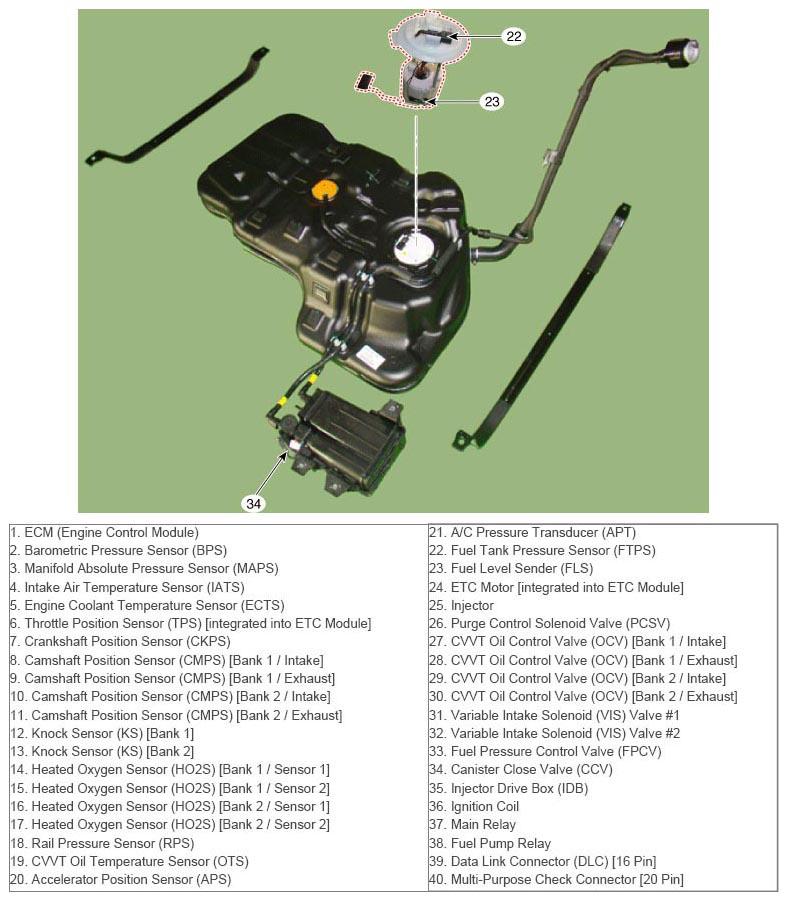

Fig 1: Engine Control And Fuel System Related Components (1 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

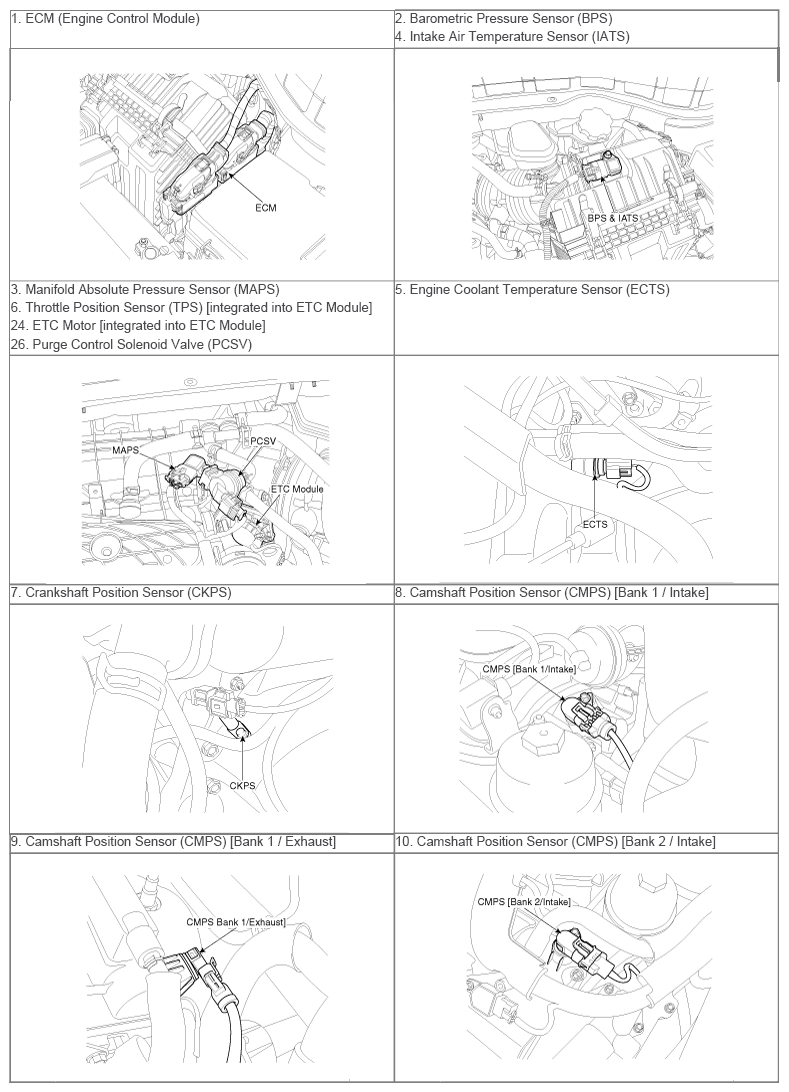

Fig 2: Engine Control And Fuel System Related Components (2 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

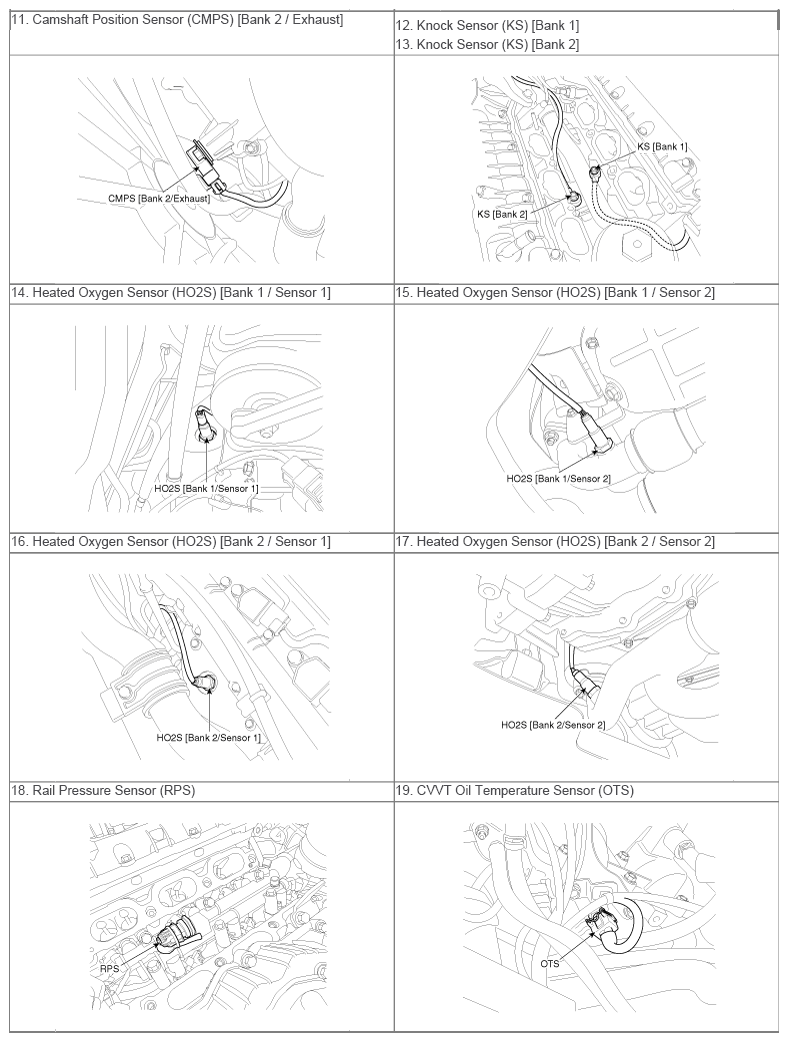

Fig 3: Engine Control And Fuel System Related Components (3 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

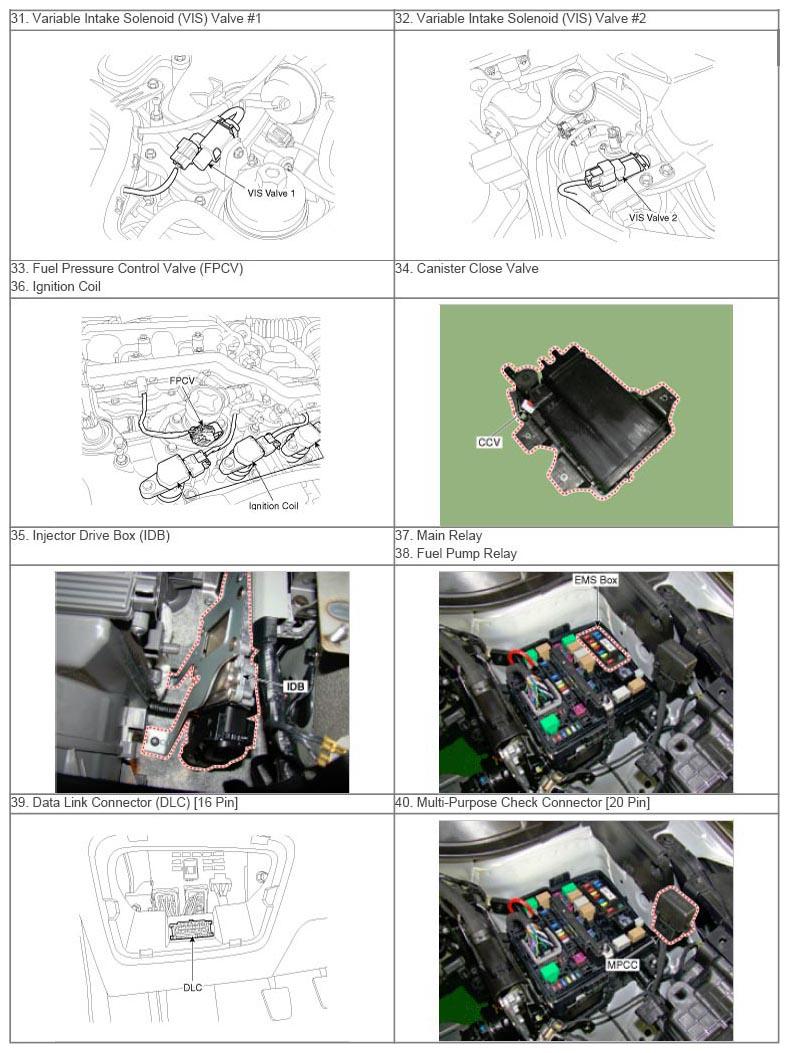

Fig 4: Engine Control And Fuel System Related Components (4 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

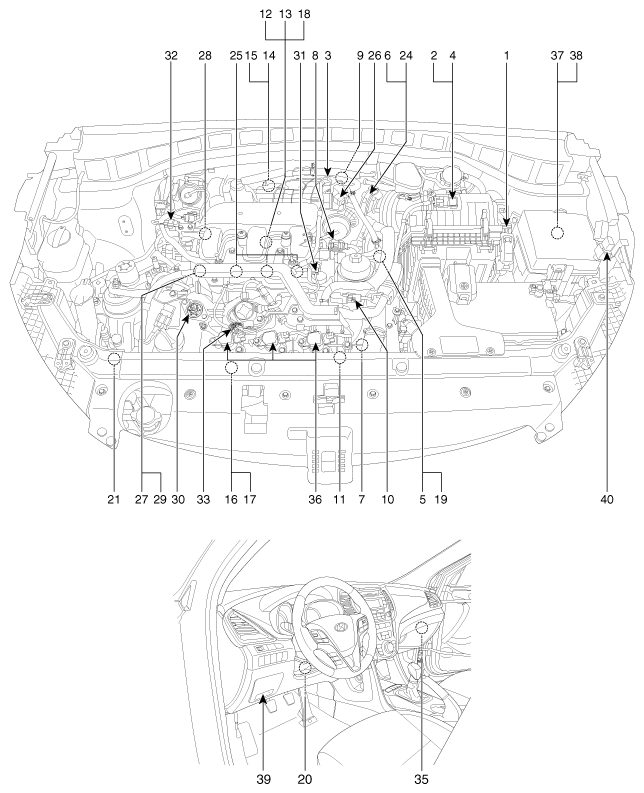

Fig 5: Engine Control And Fuel System Related Components (5 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

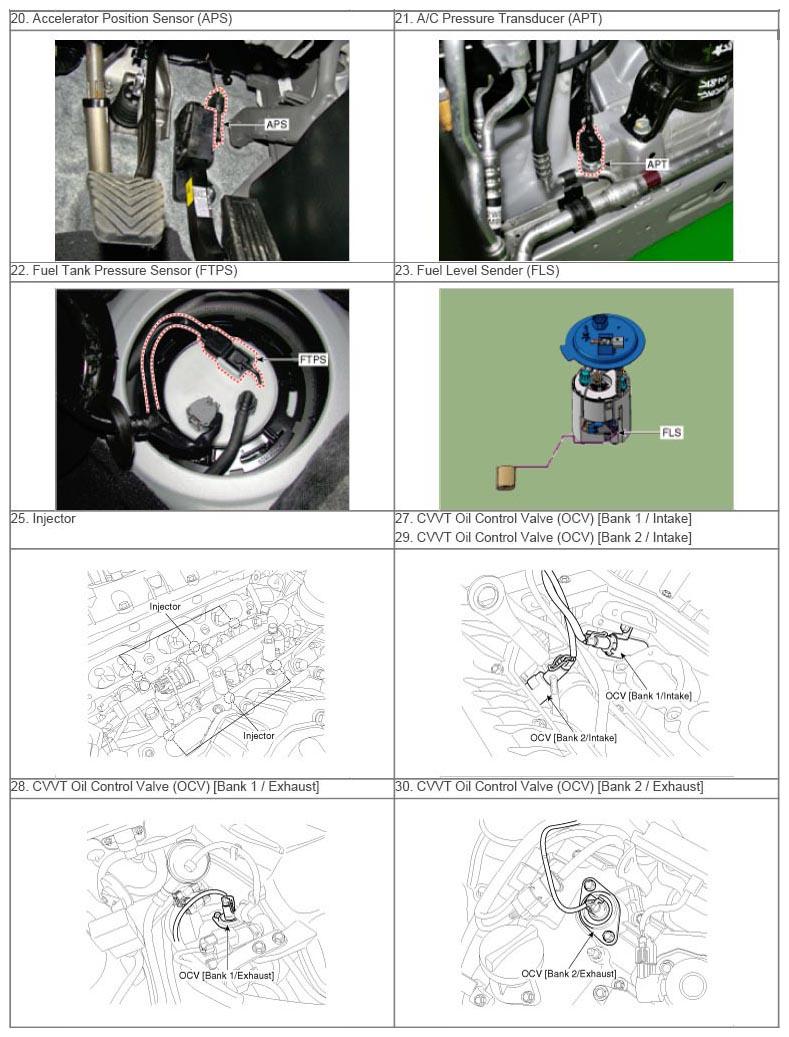

Fig 6: Engine Control And Fuel System Related Components (6 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
