Calibration Mode

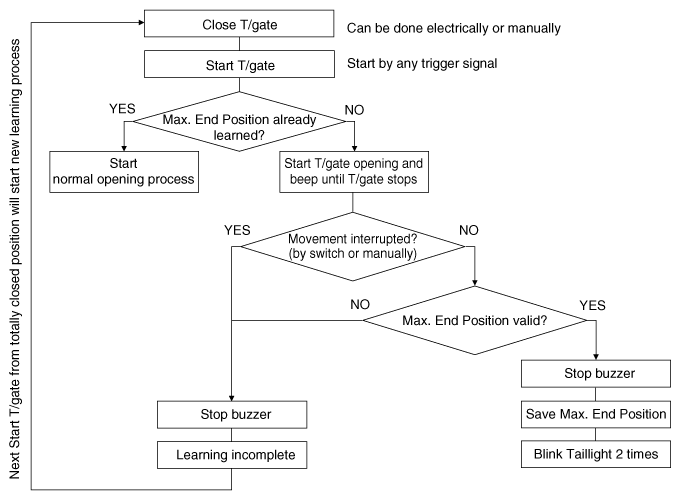

Fig 1: Liftgate System Flow Chart - Calibration Mode
G10576963Courtesy of HYUNDAI MOTOR AMERICA
