ESCL Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "ESCL STATUS INFO".

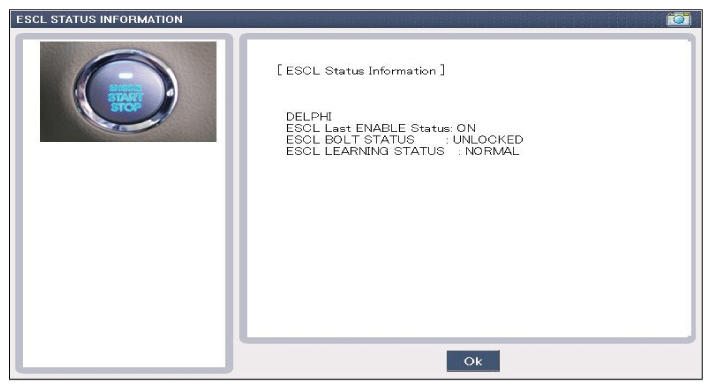

Fig 1: Display - ESCL Status Information Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Display - ESCL Status Information Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
