Signal waveform

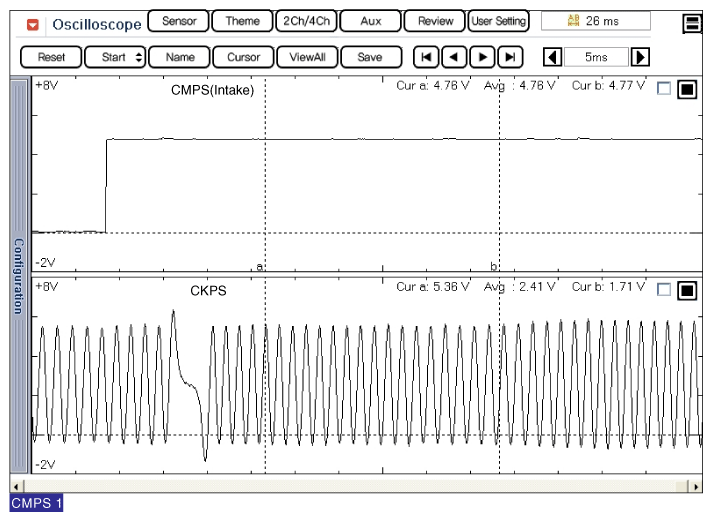

Fig 1: Display - CMPS1 Signal Waveform Screen
G10611484Courtesy of HYUNDAI MOTOR AMERICA

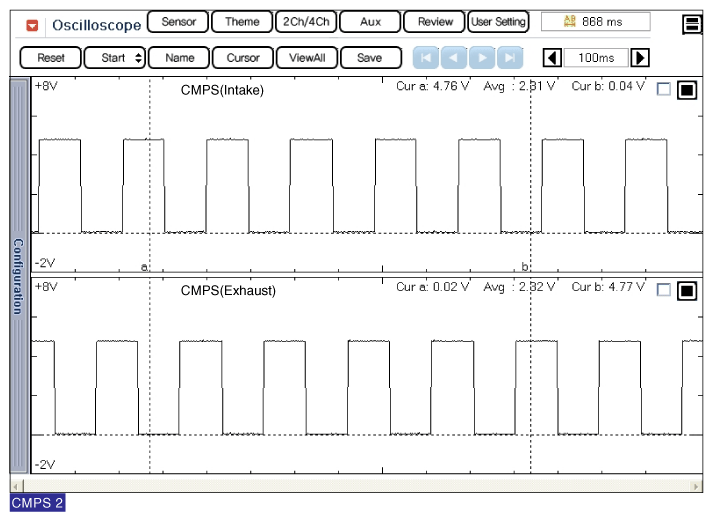

Fig 2: Display - CMPS2 Signal Waveform Screen
G10611485Courtesy of HYUNDAI MOTOR AMERICA
