Circuit Diagram

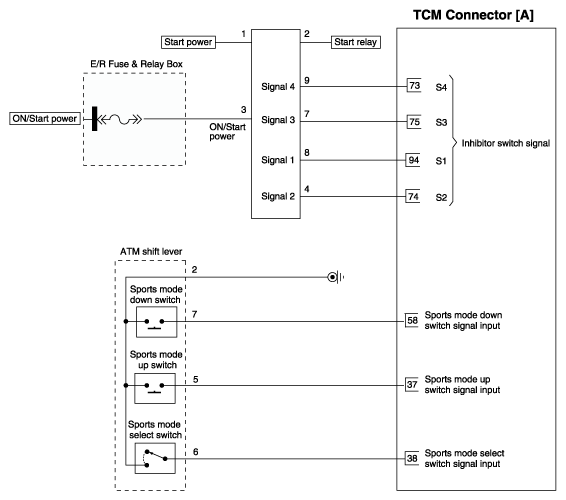

Fig 1: TCM Connector Circuit Diagram (1 Of 2)
G10611740Courtesy of HYUNDAI MOTOR AMERICA

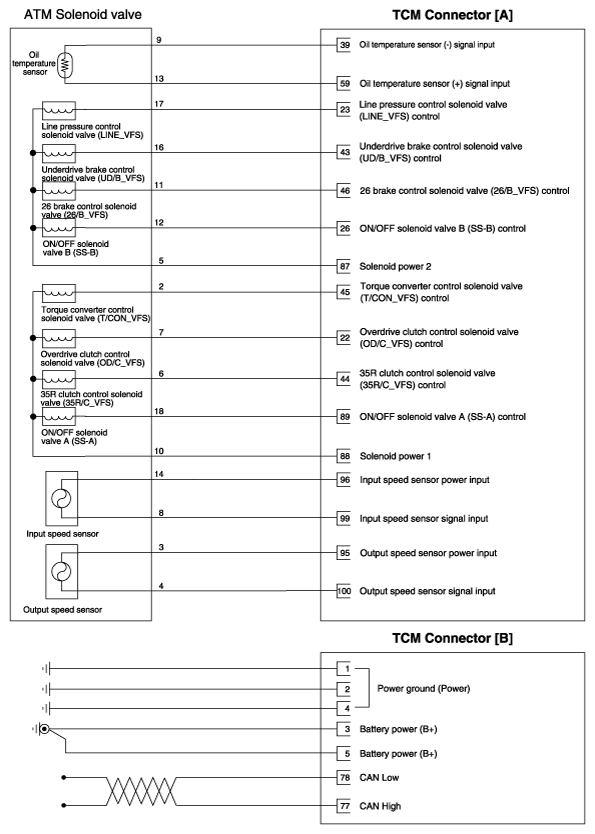

Fig 2: TCM Connector Circuit Diagram (2 Of 2)
G10611741Courtesy of HYUNDAI MOTOR AMERICA
