Circuit Diagram

[WT)

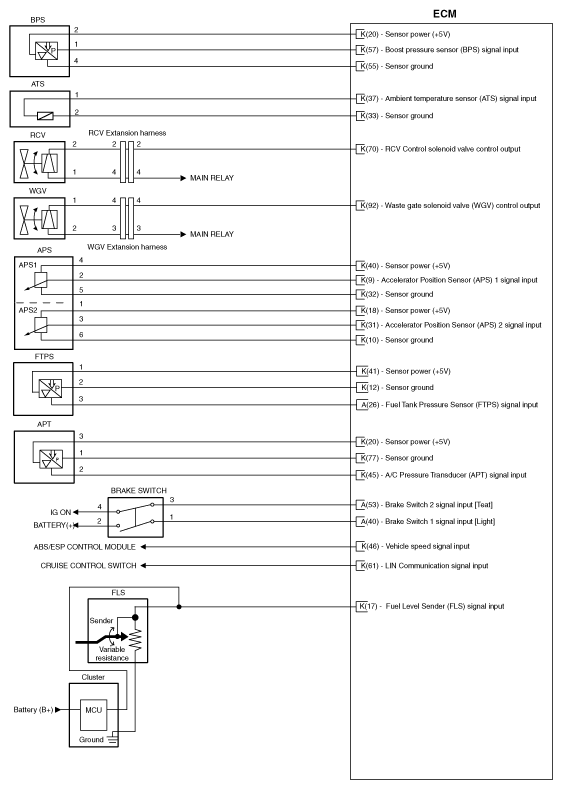

Fig 1: Engine Control Module Circuit Diagram - M/T (1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

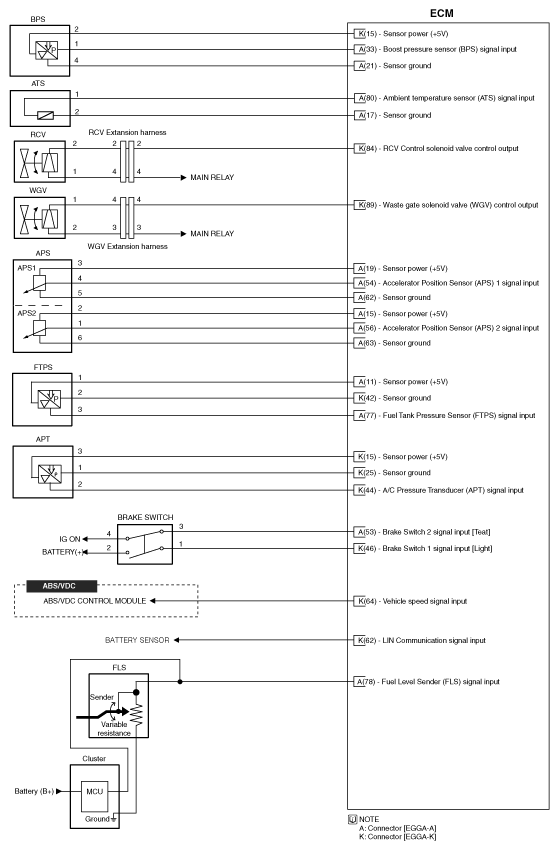

Fig 2: Engine Control Module Circuit Diagram - M/T (2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

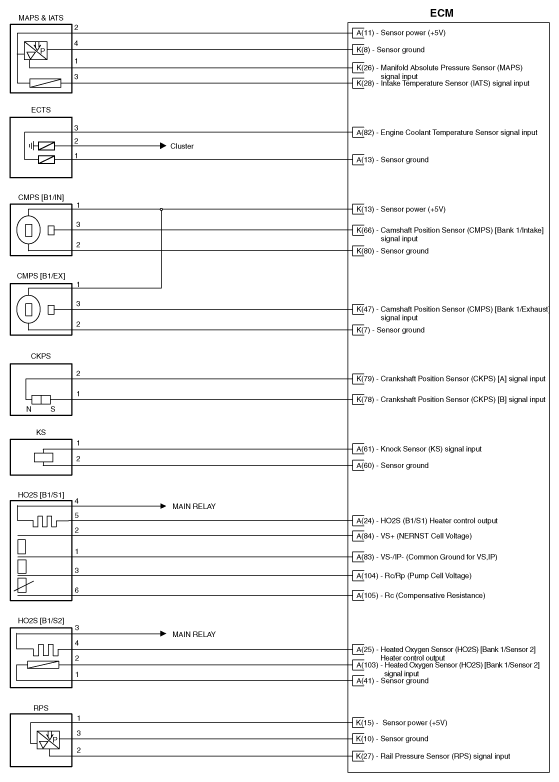

Fig 3: Engine Control Module Circuit Diagram - M/T (3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

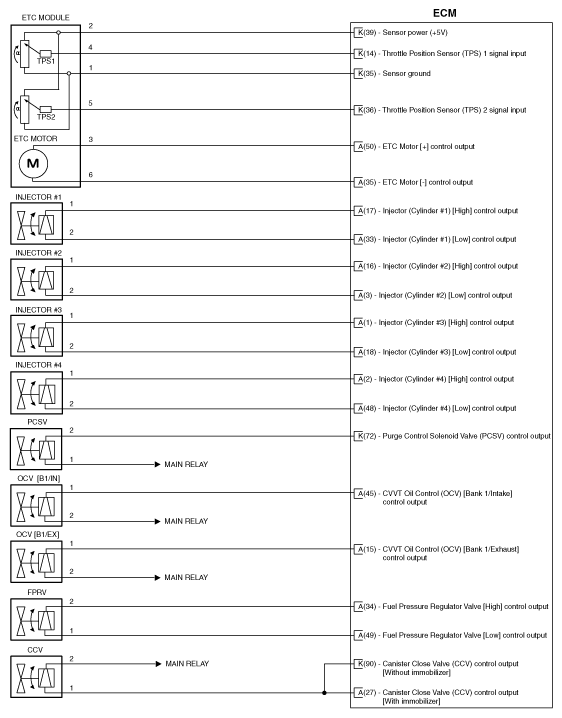

Fig 4: Engine Control Module Circuit Diagram - M/T (4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

[A/T]

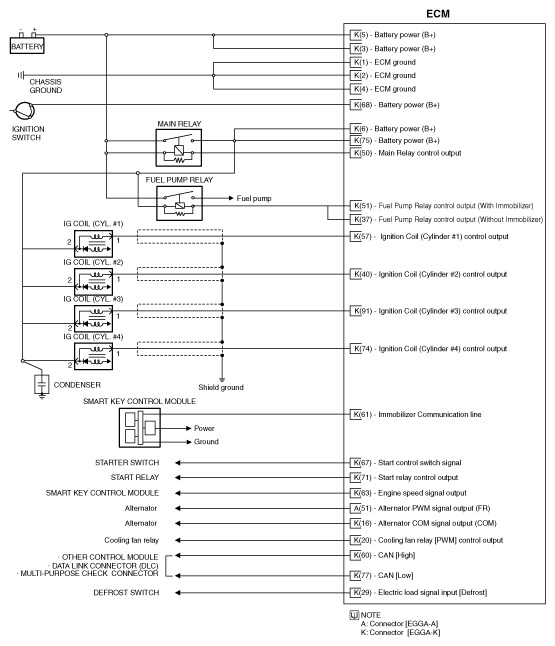

Fig 5: Engine Control Module Circuit Diagram - A/T (1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

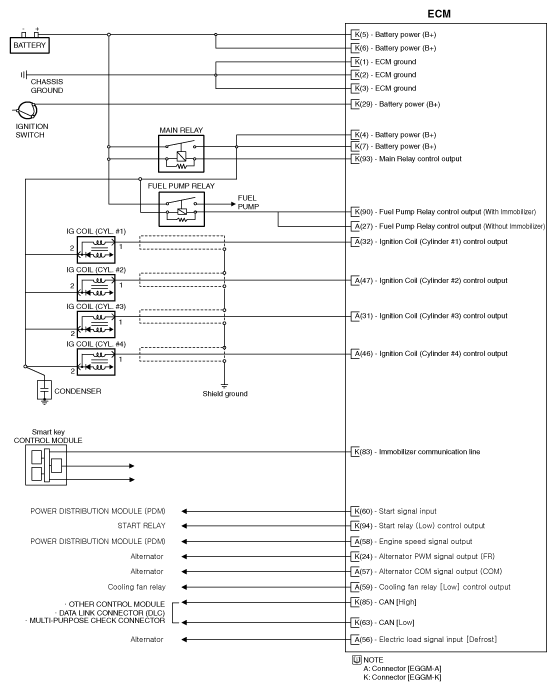

Fig 6: Engine Control Module Circuit Diagram - A/T (2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

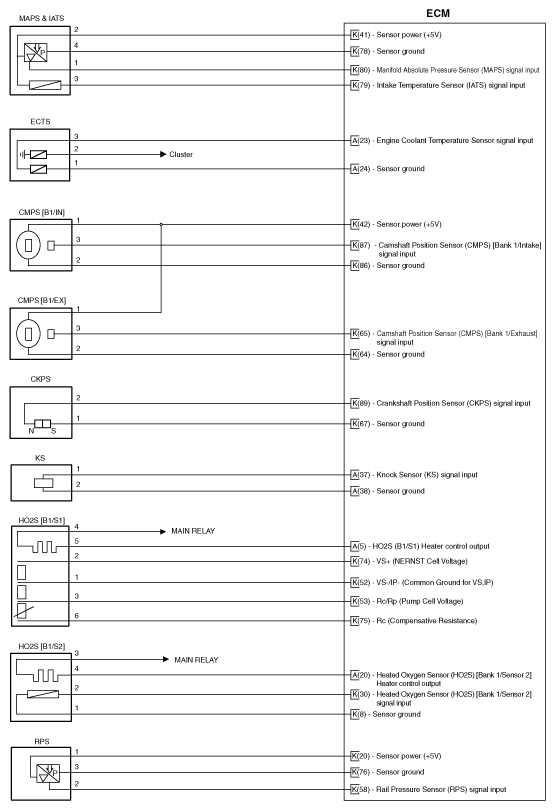

Fig 7: Engine Control Module Circuit Diagram - A/T (3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Engine Control Module Circuit Diagram - A/T (4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA
