Components and Components Location: Components

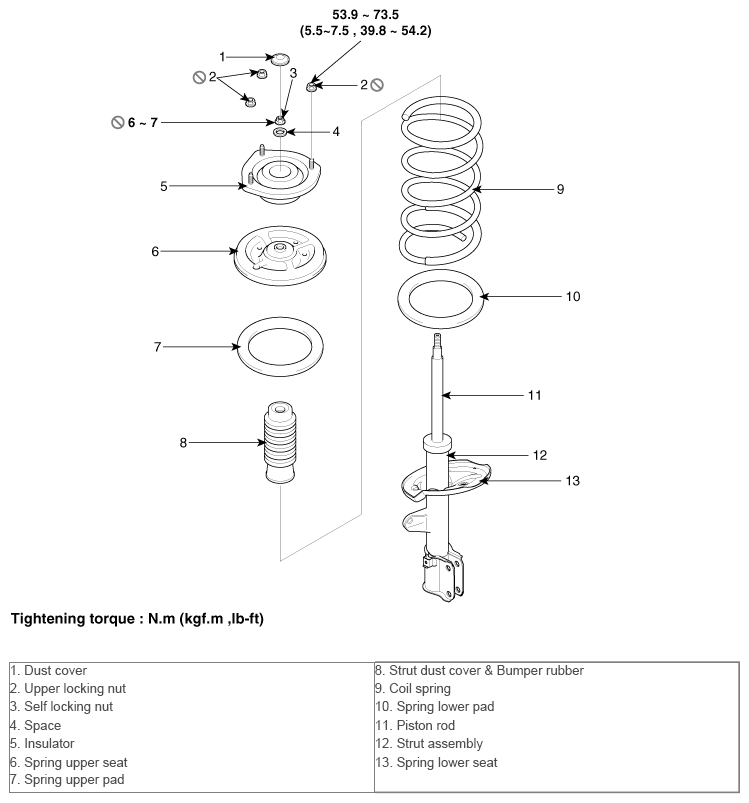

Fig 1: Front Strut Assembly With Torque Specifications
G10367834Courtesy of HYUNDAI MOTOR AMERICA
