Defroster Control

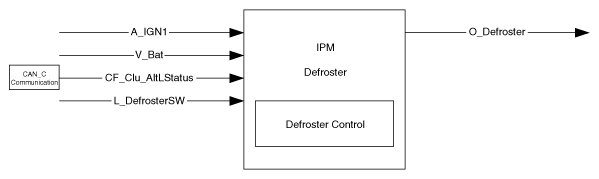

Fig 1: Defroster Control Communication Diagram
G10368872Courtesy of HYUNDAI MOTOR AMERICA
Function Characteristics Name
Signal Label Spec. Designation
Input Logic L_DefrosterSW Defroster Switch
Analog A_IGN1 Ignition 1 Signal
V_Bat Battery Voltage
CAN_C Communication CF_Clu_AltLStatus Engine is running
Output Logic O_Defroster Defroster Output
