Door Lock/unlock Control

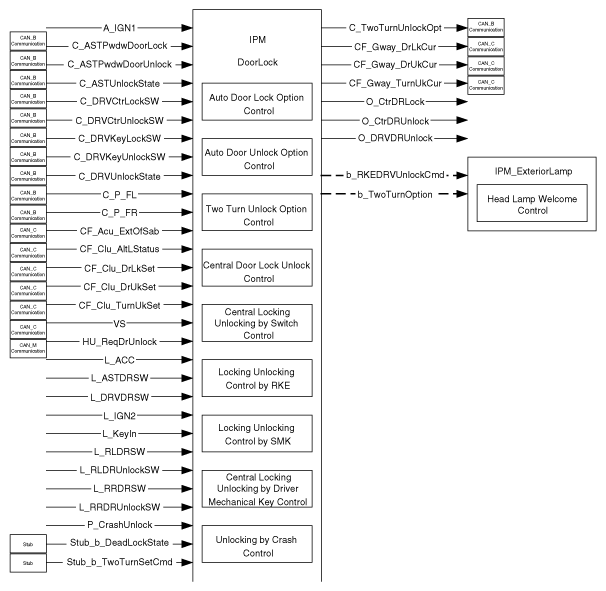

This IPM DoorLock describes the following functions:
- Auto Door Lock (Unlock) Option Control Function
- Central Door Lock Unlock Control Function
- Central Locking Unlocking by Switch Control Function
- Locking Unlocking Control by RKE Function
- Locking Unlocking Control by SMK Function
- Central Locking Unlocking by Driver Mechanical Key Control Function
- Unlocking by Crash Control Function
- Side Airbag Signal Function
- Auto Door Lock by Shift-Lever
- Auto Door Lock by Vehicle Speed
- Auto Door Unlock by Shift-Lever
- Auto Door Unlock by Driver Safety Knob state
- Auto Door Unlock by Key Off
- Key Reminder Unlock
- Key Reminder Unlock by SMK Key Reminder Unlock Function
| Function | Characteristics | Name | |
|---|---|---|---|
| Signal Label | Spec. Designation | ||
| Input | Logic | L_ACC | Accessory Signal |
| L_ASTDRSW | Assistant Door Switch Status | ||
| L_DRVDRSW | Driver Door Switch status | ||
| L_IGN2 | Ignition 2 Signal | ||
| L_KeyIn | Key In signal | ||
| L_RLDRSW | Rear Left Door Switch Status | ||
| L_RLDRUnlockSW | Rear Left Door Unlock Switch | ||
| L_RRDRSW | Rear Right Door Switch Status | ||
| L_RRDRUnlockSW | Rear Right Door Unlock Switch | ||
| Analog | A_IGN1 | Ignition 1 Signal | |
| PWM | P_CrashUnlock | Crash Unlock Command | |
| CAN_B Communication | C_ASTPwdwDoorLock | Central Door Lock Switch in ADM | |
| C_ASTPwdwDoorUnlock | Central Door Unlock Switch in ADM | ||
| C_ASTUnlockState | Assist Door Unlock Switch | ||
| C_DRVCtrLockSW | Central Door Lock Switch in DDM | ||
| C_DRVCtrUnlockSW | Central Door Unlock Switch in DDM | ||
| C_DRVKeyLockSW | Driver Key Lock signal | ||
| C_DRVKeyUnlockSW | Driver Key Unlock signal | ||
| C_DRVUnlockState | Driver Door Unlock Switch | ||
| C_P_FL | Passive Access from Front Left | ||
| C_P_FR | Passive Access from Front Right | ||
| CAN_C Communication | CF_Acu_ExtOfSab | Existence of Side (or Side/Curtain) Airbag | |
| CF_Clu_AltLStatus | Engine is running | ||
| CF_Clu_DrLkSet | Request set the new Auto Door Lock Mode | ||
| CF_Clu_DrUkSet | Request to set Auto Door Unlock Mode | ||
| CF_Clu_TurnUkSet | Request to set Two Turn Unlock Mode | ||
| VS | Vehicle Speed Signal | ||
| Stub | Stub_b_DeadLockState | Dead Lock State | |

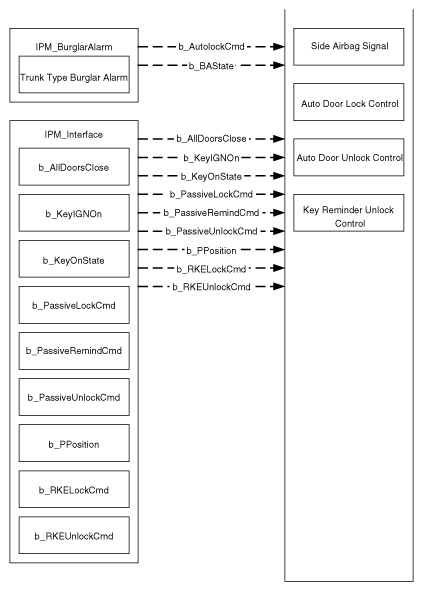

| Internal | b_AllDoorsClose | All Doors Open/Close State | |
| b_AutolockCmd | Lock request by Auto Locking (Burglar Alarm Function) | ||
| b_BAState | Burglar Alarm State is in ARM type state | ||
| b_KeyIGNOn | Key In and IGN1/2 On state | ||
| b_KeyOnState | Key In or Fob In or Terminal On state | ||
| b_PassiveLockCmd | SMK Passive Lock Command | ||
| b_PassiveRemindCmd | SMK Passive Key Reminder Unlock Command | ||
| b_PassiveUnlockCmd | SMK Passive Unlock Command | ||
| b_PPosition | Gear Shift Lever P Position Input | ||
| b_RKELockCmd | RKE Lock Command | ||
| b_RKEUnlockCmd | RKE Unlock Command | ||
| Output | Internal | b_RKEDRVUnlockCmd | RKE Driver Door Unlock command |
| Logic | O_CtrDRLock | Central Door Lock Output | |
| O_CtrDRUnlock | Central Door Unlock Output | ||
| O_DRVDRUnlock | Driver Door Unlock Output | ||
| CAN_C Communication | CF_Gway_DrLkCur | Current setting value for Auto Door Lock Mode | |
| CF_Gway_DrUkCur | Current setting value for Auto Door Unlock Mode | ||
| CF_Gway_TurnUkCur | Current setting value for Two Turn Unlock Mode | ||
