Front Wiper Mist Control

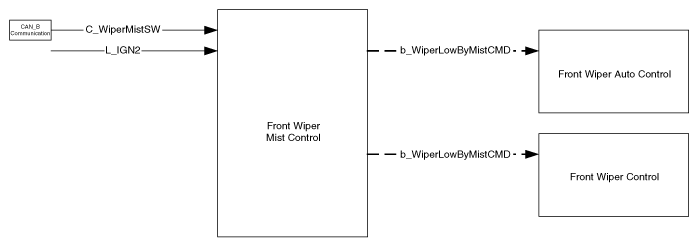

Fig 1: Front Wiper Mist Control Communication Diagram
G10368879Courtesy of HYUNDAI MOTOR AMERICA
Function Characteristics Name
Signal Label Spec. Designation
Input Logic L_IGN2 Ignition 2 Signal
CAN_B Communication C_WiperMistSW Wiper Mist Switch from MFSW
Output Internal b_WiperLowByMistCMD Wiper Mist Output command by Switch
